Applications：
TK film system, top entertainment clubs, nightclubs, high-end mass-market KTV, music bars, auditoriums, conference rooms and other language and music sound reinforcement venues.
Engineering Information：

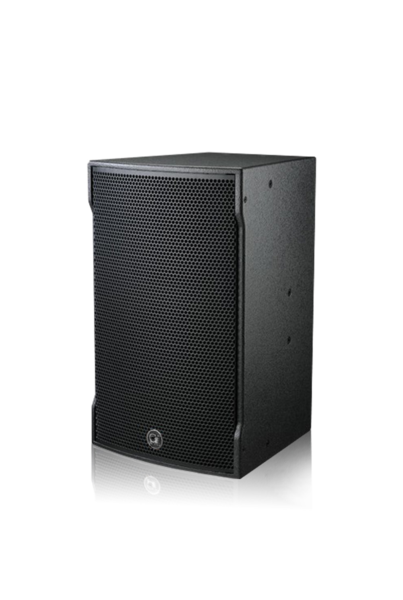

MODEL: TK-120
| Drivers | HF：1×1"Voice-clil:1.73"/ LF：1×10"Voice-coil:2.5" |
| Frequency(+/-3dB) | 50-18000Hz |
| Dispersion(-6dB) | 80°x50° |
| Sensitivity(1m/1w) | 97dB |
| Maximum SPL | 125.3dB Continuous / 131.3dB Peak |
| Nominal Impedance | 8 Ohm |
| Crossover Frequency | 2000Hz |
| Rated Power | 680W RMS/1360W Peak |
| Enclosure | High-quality plywood with black environmentally friendly water-based paint |
| Connectors | 2×Speakon NL4MP |
| Dimexnsions(H×W×D) | 605mm×(381,270)mm×392mm |
| Net Weight(Kg) | 21 |

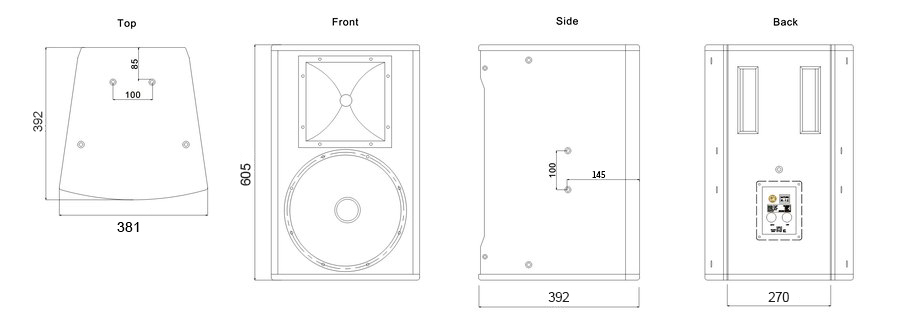

Constrction DraWing:
