Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.
Engineering Information：

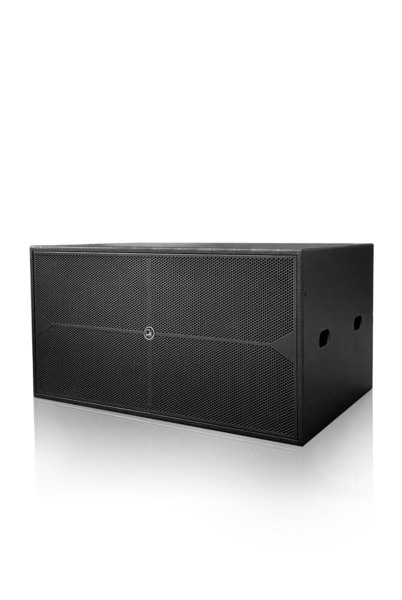

MODEL: TC-280A
| Drivers: | LF：2×18" Voice-coil:4" |
| Frequency(-10dB): | 38-180Hz |
| Dispersion(-6dB): | --- |
| Sensitivity(1m/1w): | 101dB |
| Maximum SPL: | 136dB Continuous/142dB Peak |
| Nominal Impedance: | 4 Ohms |
| Rated Power: | 3200W RMS/6400W Peak |
| Power amp: | 1600W/8 Ohm BTL +1600W/8 Ohm BTL |
| Amplifier type: | Switched power amplifier,Class D circuit,with DSP/96K processing |
| Material: | High-quality double-layer birch plywood box |
| Mesh surface: | High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish: | Environmental protection water-based paint |
| Connectors: | 2×Speakon XLR |
| Handing Position: | --- |
| Dimexnsions(H×W×D): | 1064mm×561mm×730mm |
| Net Weight(Kg): | 81.7 |

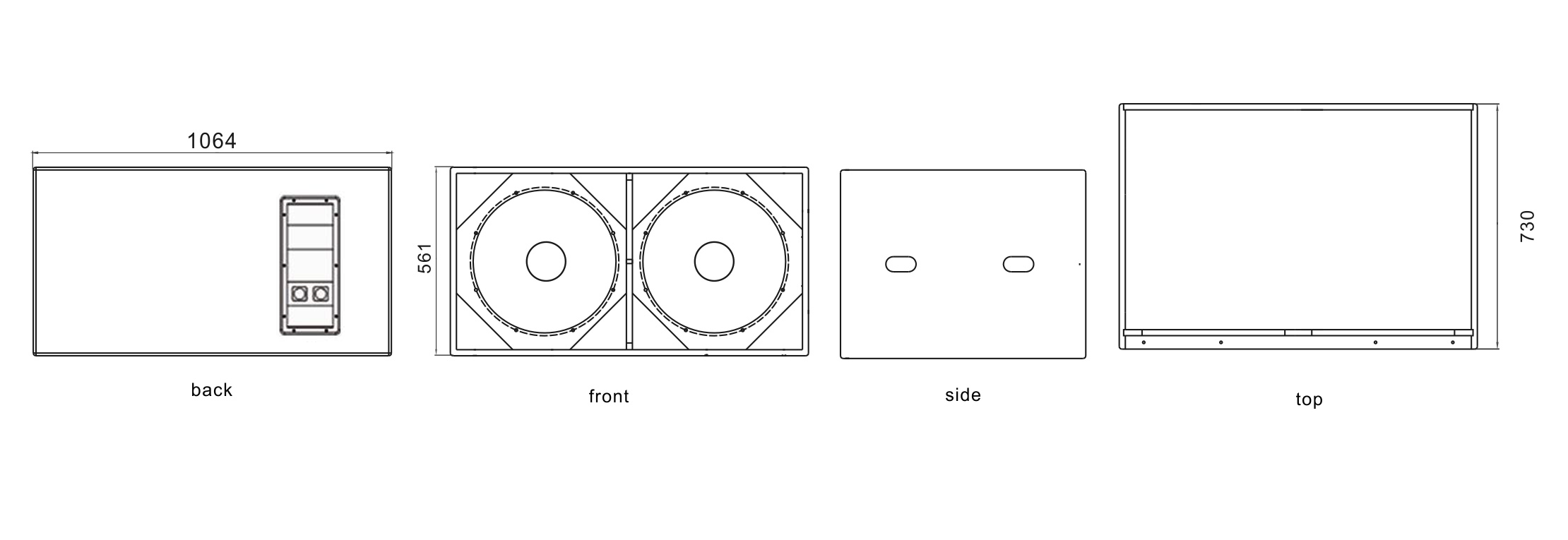

Constrction DraWing:
