Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.
Engineering Information：

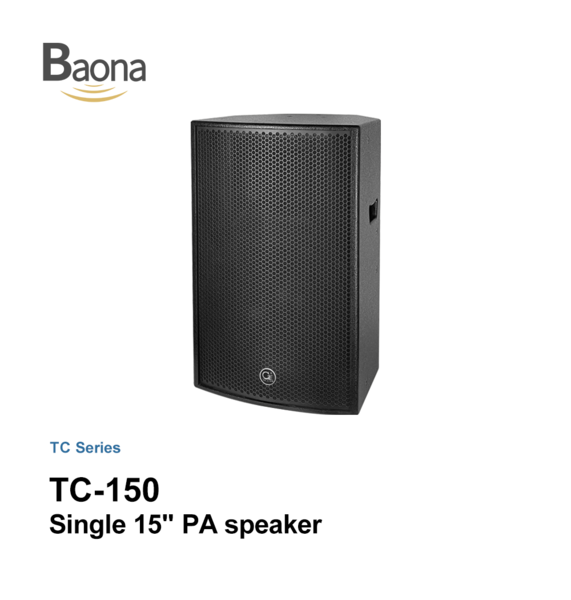

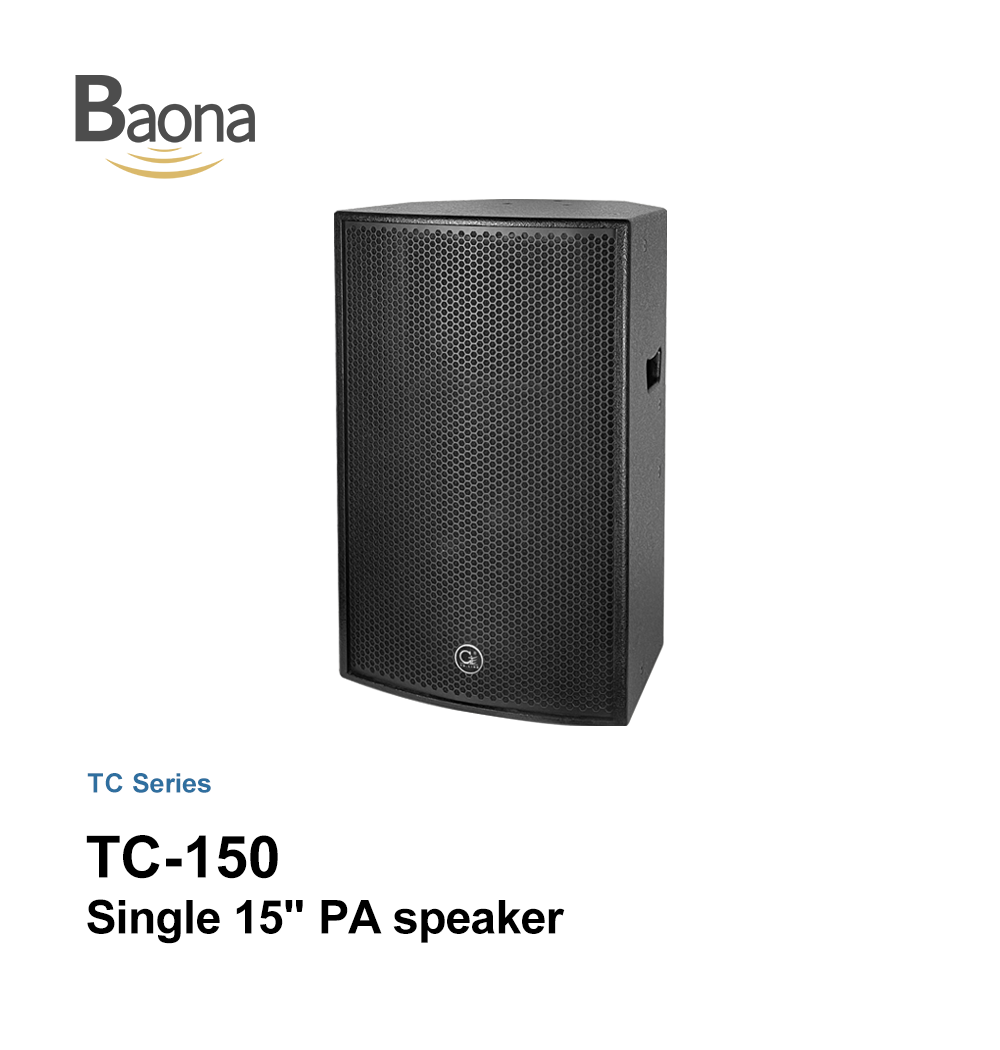

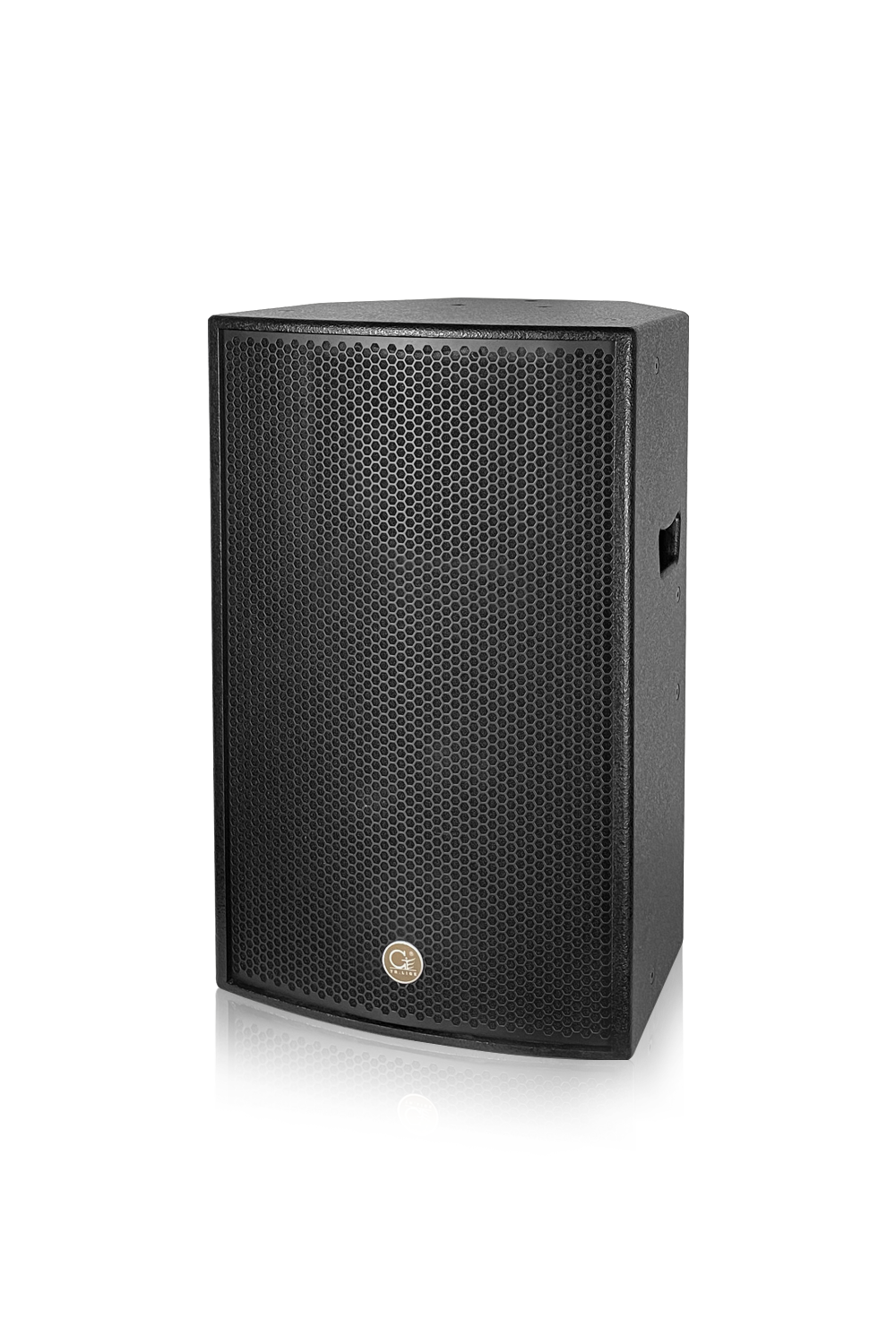

MODEL: TC-150
| Drivers | HF:1×1.4"Voice-coil:3"/ LF:1×15"Voice-coil:3"
|
| Frequency(-10dB) | 45-18000Hz |
| Dispersion(-6dB) | 90°×60° |
| Sensitivity(1m/1w) | 101dB |
| Maximum SPL | 131.3dB Continuous/137.3dB Peak |
| Nominal Impedance | 8 Ohms |
| Rated Power | 1080W RMS/2160W Peak |
| Recommended AMP | 1000W/8 Ohms
|
| Crossover Frequency | 1600Hz (24dB/Octave slope) |
| Material | High-quality double-layer birch plywood box |
| Mesh surface |
High strength pressed mesh surface, paste a special acoustic sponge mesh |
| Finish | Environmental protection water-based paint |
| Connectors | 2×Speakon NL4MP |
| Handing Position | 19 M8Lifting point |
| Dimexnsions(H×W×D) | 672mm×(428,220)mm×434mm |
| Net Weight(Kg) | 32.4 |
Constrction DraWing:
