Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.
Engineering Information：

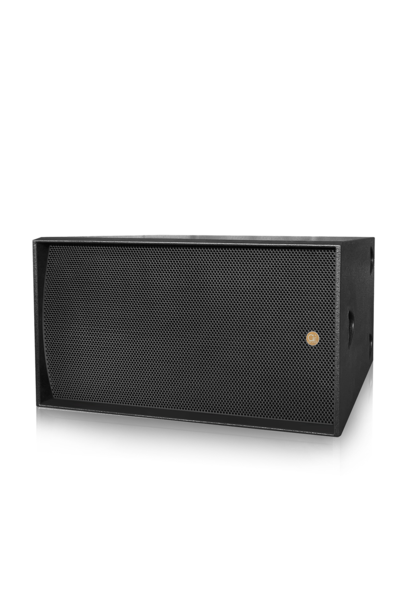

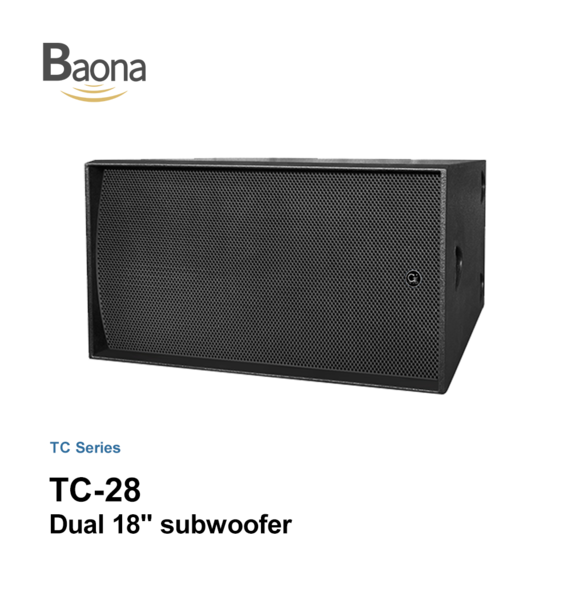

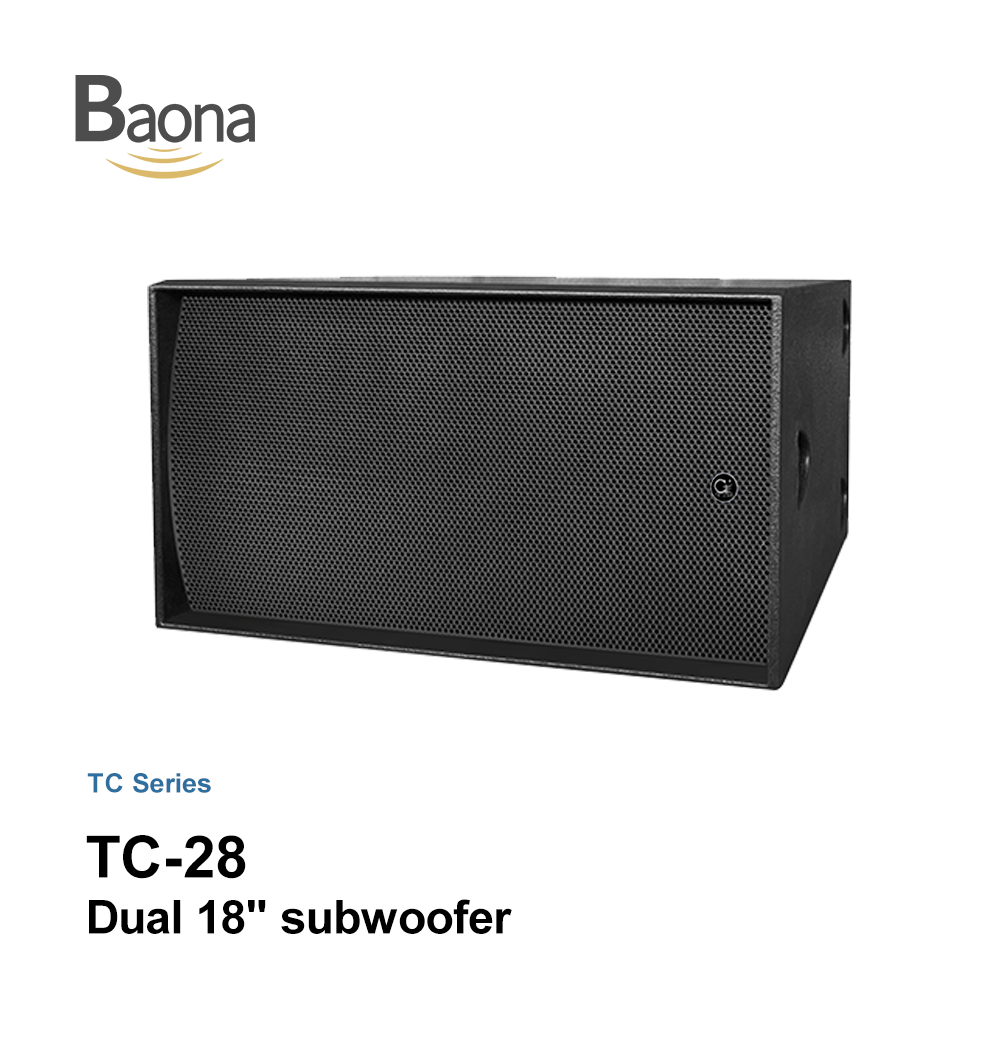

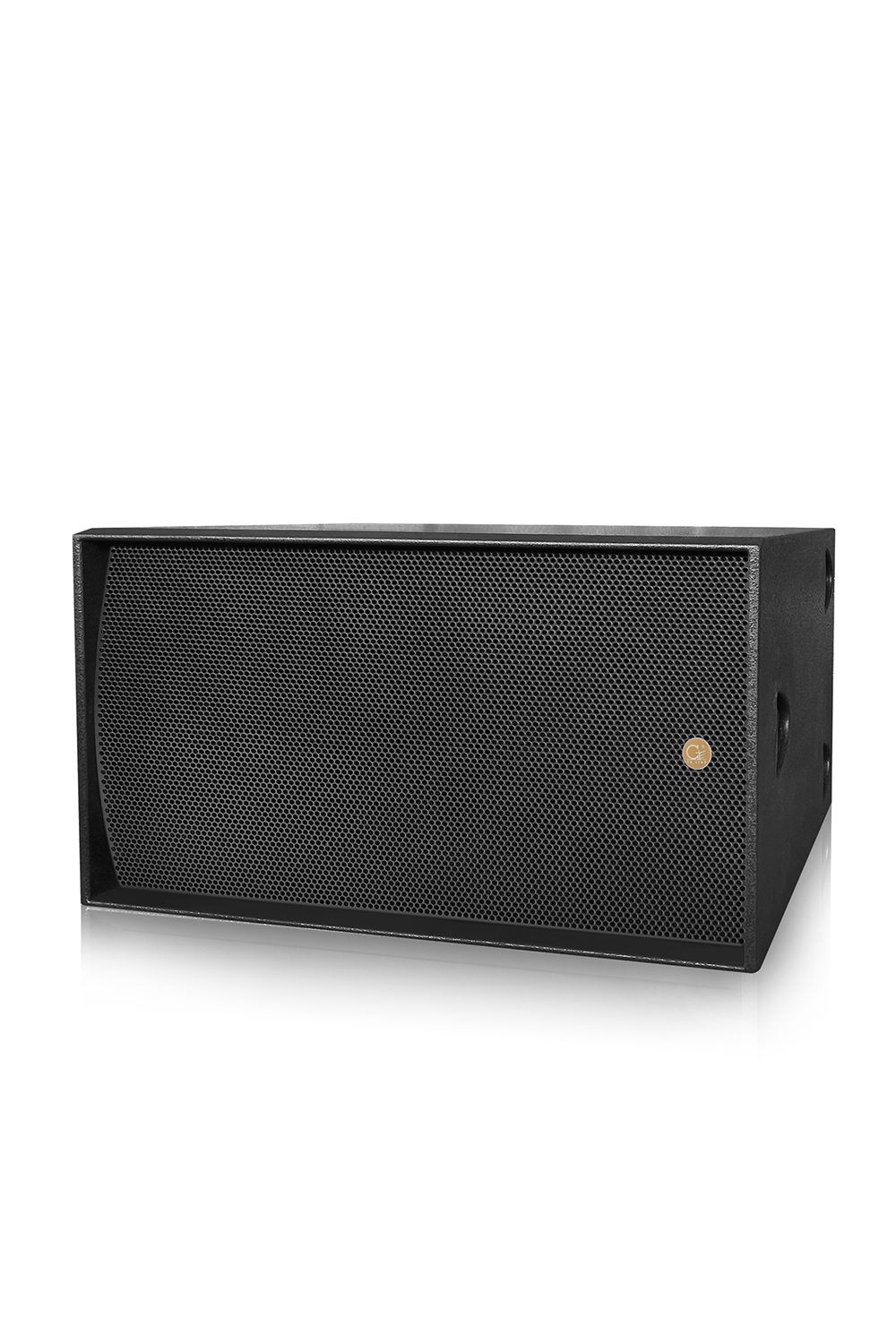

MODEL:TC-28
| Drivers | LF:2×18"Voice-coil:4"
|
| Frequency(-10dB) | 38-180Hz |
| Dispersion(-6dB) | --- |
| Sensitivity(1m/1w) | 100dB |
| Maximum SPL | 135dB Continuous/141dB Peak |
| Nominal Impedance | 4 Ohms |
| Rated Power | 3200W RMS/6400W Peak |
| Recommended AMP | 3200W/4 Ohms |
| Material | High-quality double-layer birch plywood box |
Mesh surface | High strength pressed mesh surface, paste a special acoustic sponge mesh. |
| Finish | Environmental protection water-based paint |
| Connectors | 2×Speakon NL4MP |
| Handing Position | --- |
| Dimexnsions(H×W×D) | 1065mm×560mm×782mm |
| Net Weight(Kg) | 76.2 |

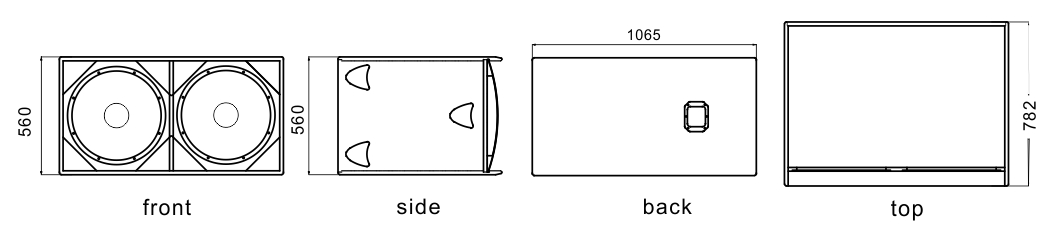

Constrction DraWing:
