Applications：
High-end fixed installation places such as large bars, party night venues, theaters, multi-function halls, auditoriums, etc.
Engineering Information：

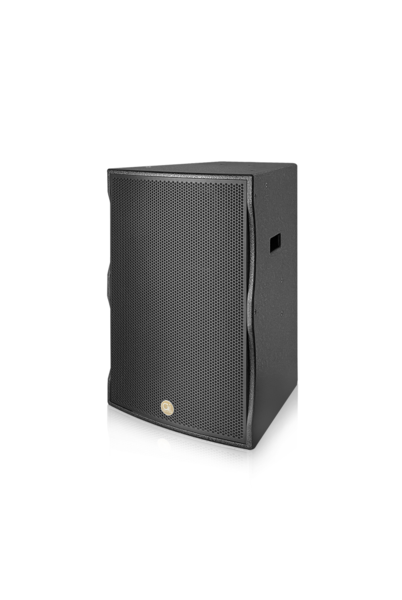

MODEL: TT-15
Drivers | HF：1×1.4"Voice-coil:3"/ LF：1×15"Voice-coil:3" |
Frequency(+/-10dB) | 45-18000Hz |
Dispersion(-6dB) | 90°×60° |
Sensitivity(1m/1w) |
101dB |
Maximum SPL | 130dB Continuous / 136dB Peak |
Nominal Impedance | 8 Ohm |
Rated Power | 550W AES / 2200W Peak |
Recommended AMP | 1000W / 8 Ohms |
Crossover Frequency | 1500Hz |
Material | High-quality double-layer birch plywood box |
Mesh surface | High-strength steel mesh with hexagonal holes and black acoustic guitar cloth mesh on the outside. |
Finish | Environmental protection water-based paint |
Connectors | Connectors 2×Speakon |
Handing Position | 19 M8Lifting point
|
| Dimexnsions(H×W×D) | 735mm x 475mm x 450mm |
| Net Weight(Kg) | 32.6 |

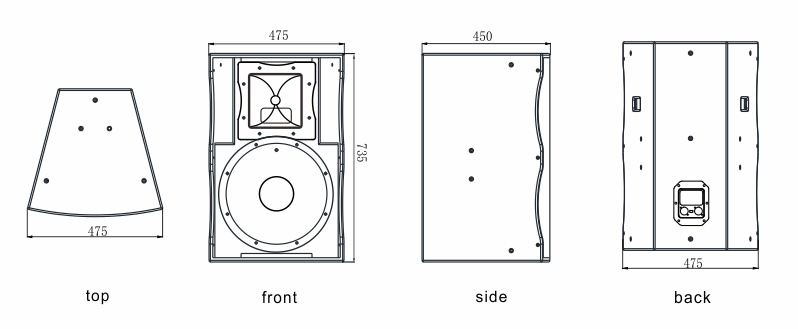

Constrction DraWing:
