Applications：
All indoor and outdoor performance events, including concerts, music festivals, auditoriums, churches, banquet halls, concert halls, conference rooms, and other venues for speech and music reinforcement.
Engineering Information：

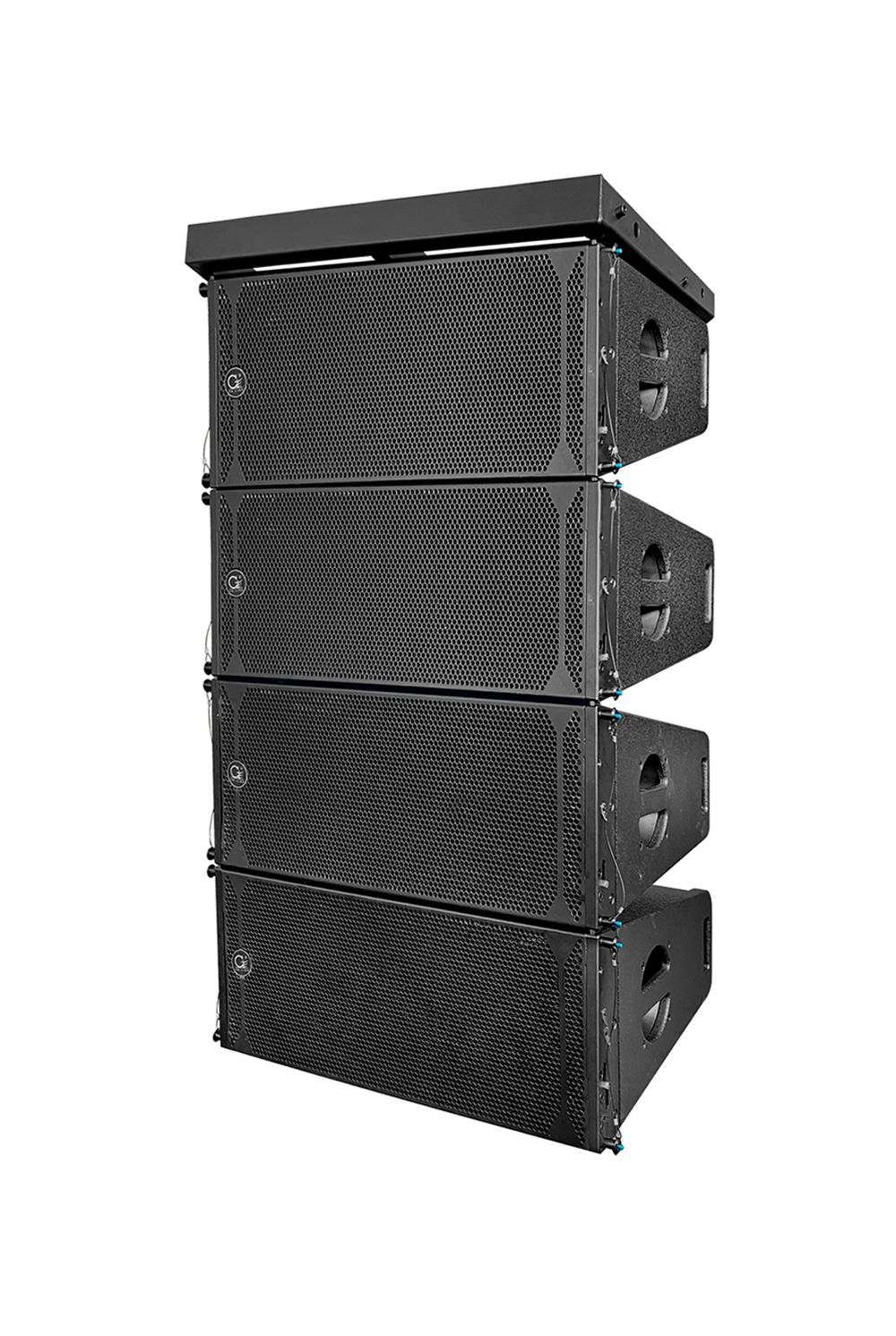

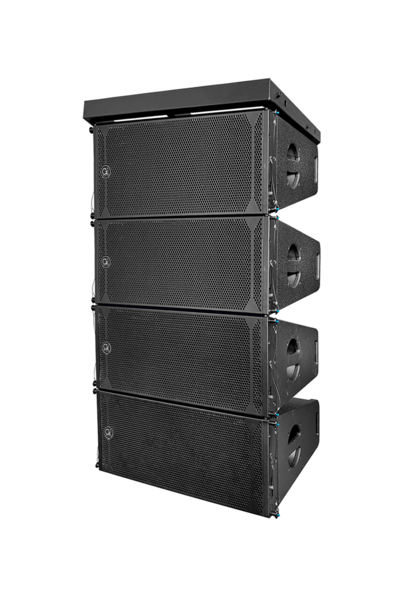

MODEL:TQ-2210
| Drivers | HF:1×1.4"Voice-coil:3" LF:2×10"Voice-coil:2.5" |
| Frequency (-10dB) | 68-18000Hz |
| Dispersion(-6dB) | horizontal:80°-100°/Splay angle setting:0°-12°(1°increment) |
| Sensitivity（1m/1W) | HF:103dB/LF:98dB |
| Maximum SPL | 128dB continuous/134dB Peak |
| Nominal Impedance | HF:16 Ohms/LF:16 Ohms |
| Rated Power | HF:140W RMS/280W Peak LF:1000W RMS /2000WPeak |
| Recommended AMP | HF:200W/8 Ohms LF:1300W/8 Ohms |
| Crossover Frequency | 1200Hz |
| Connectors | 2x Speakon NL4MP |
| Material | High-quality double-layer birch plywood box |
| Mesh surface | High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish | Environmental protection water-based paint |
| Handing Position | Dedicated hoisting system |
| Dimensions(H×WxD) | 290mm×700mm×516mm |
| Net Weight(Kg) | 29.5 |
Constrction DraWing:
