Applications：
High-end fixed installation places such as large bars, party night venues, theaters, multi-function halls, auditoriums, etc.
Engineering Information：
MODEL: TT-715A
Drivers | LF:1×15"(350mm)/3"(77mm)Voice-coil HF:1×1.4"(36mm)exit/3"(75mm)Voice-coil |
Frequency(+/-3dB) | 50-20000Hz |
Dispersion(-6dB) | 22.5°X20°（bottom）40°（top） |
Sensitivity(1m/1w) | HF:109.5dB/LF:98.5dB |
Maximum SPL | 131.5dB /137.5dB Peak |
Nominal Impedance | 8 ohm |
Rated Power | HF:80W AES/320W Peak LF:600W AES /2400W Peak |
Recommended AMP | HF:500W 8 Ohm / HF:1300W 8Ohm |
Crossover Frequency | 1100Hz |
Material | High-quality birch plywood box |
Mesh surface | High-strength steel mesh with 12 hexagonal holes and special sound-transmitting sponge mesh inside. |
Finish | Environmental protection water-based paint
|
Connectors | 2x Neutrik NL4MP(+1/-1:HF；+2/-2:LF) |

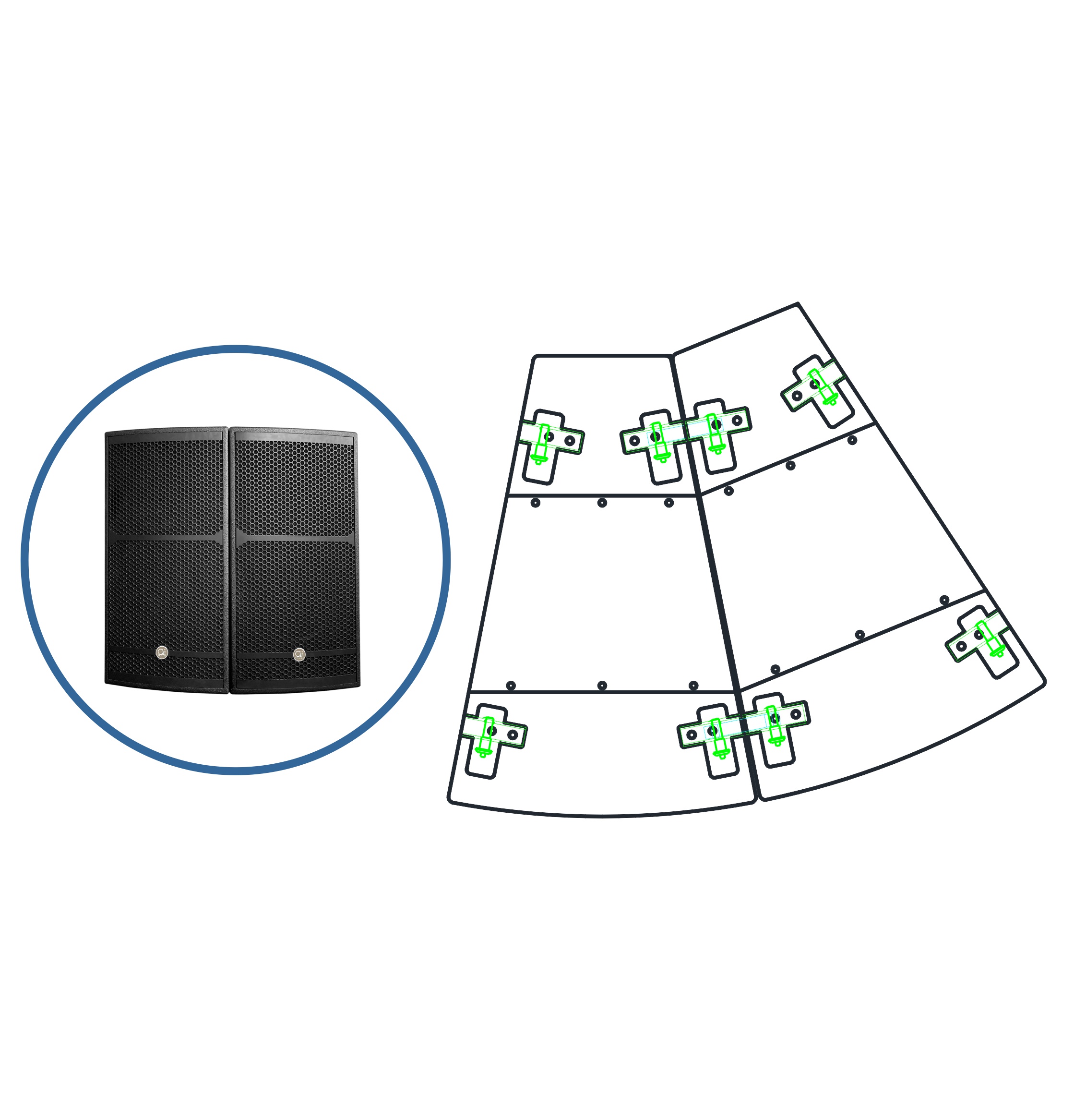

Handing Position |
Dedicated hoisting system |
| Dimexnsions(H×W×D) | 820mm×440mm×655mm |
| Net Weight(Kg) | 38.2 |

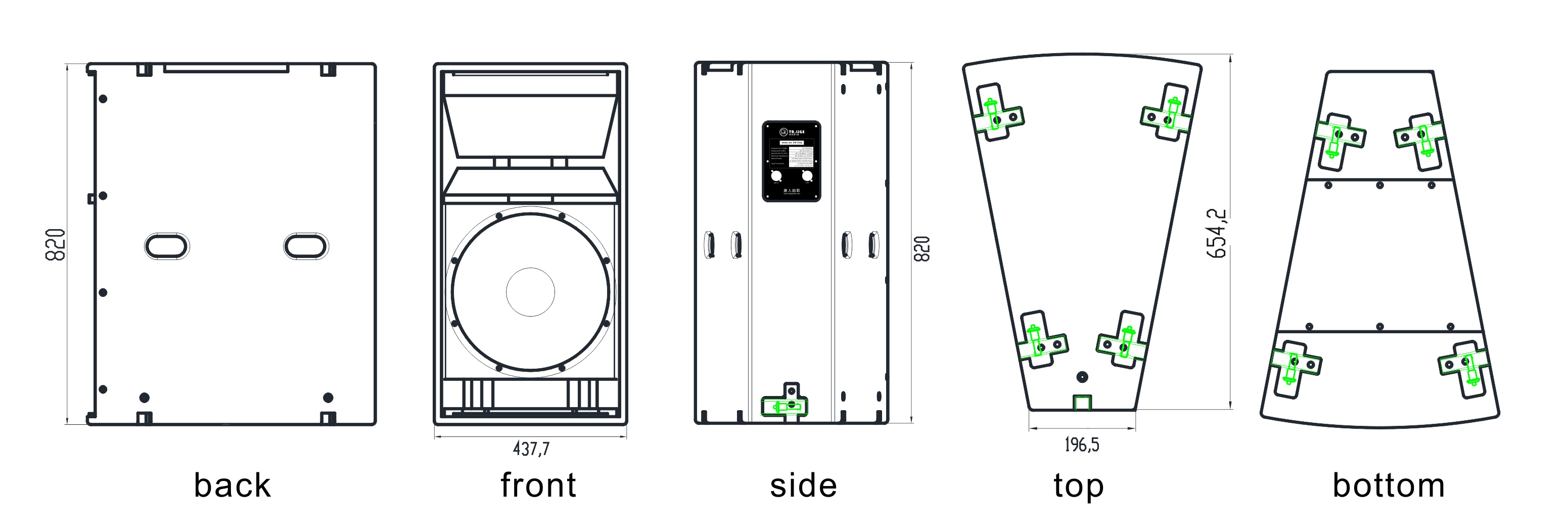

Constrction DraWing:
