Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, conference rooms a and music sound reinforcement venues.
Engineering Information：

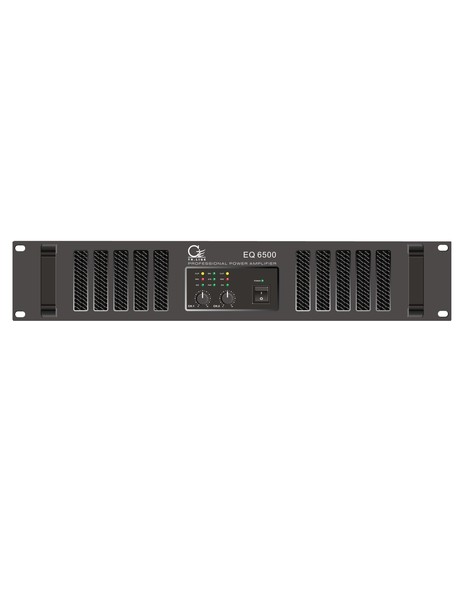

MODEL | EQ 6500 |
Output Power (EIA 1KHz 1%THD) | Stereo | 8Ω | 550W+550W |
4Ω | 830W+830W |
| Bridging | 8Ω | 1660W |
Parallel | 4Ω | 1660W |
Output Interface | 2 Speakon for Stereo & Bridge Output |
| Frequency response | 20Hz-20kHz, -0.5dB |
Input sensitivity | 0.77V |
| Balanced input impedance | 20kΩ/Balanced,10kΩ/un-Balanced |
S/N Ratio | ≥95dB |
Distortion | ≤0.03% |
Rated output power8 OHM 1KHzTime separation | ＞70dB |
Damping coefficient f=1KHz 8 OHMS | ＞240 |
Conversion rate | 15V/uS |
Protection | Soft Start,Short Circuit,Limiter,DC Fault,AC Line Fuse,Thermal Cut |
Cooling system | Two steps speed fan |
Main power supply | AC:220-230V 50Hz/60Hz |
Dimension (WxDxH) | 482×487×88 mm
|
