Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, conference rooms and other language and music sound reinforcement venues.
Engineering Information：

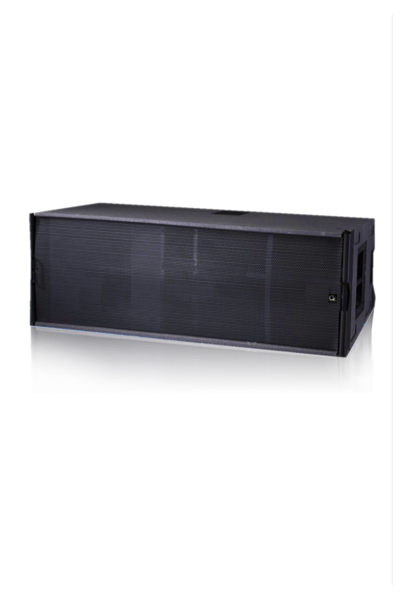

MODEL:DIAMOND-12
| Drivers | HF：3×1"Voice-coil:1.4" MF：1×6.5"Voice-coil:1.5"
LF：1×12"Voice-coil:3" |
| Frequency(+/-3dB) | 60-18000Hz |
| Dispersion(-6dB) | H 90°×7.5°/V120°(-10dB) |
| Sensitivity(1m/1w) | HF:109dB/ LF:103dB/MF:106dB |
| Maximum SPL | 128.5dB Continuous / 134.5dB Peak |
| Nominal Impedance | 8 Ohm |
| Rated Power | HF:90W AES / 360W Peak MF:190W AES / 760W Peak LF:390W AES / 1560W Peak |
| Recommended AMP | LF:800W / MF:400W/HF:200W |
| Crossover Frequency | 300Hz-3000Hz |
| Enclosure Material | High-quality double-layer birch plywood box |
| Finish | Environmental protection water-based paint |
| Connectors | 2×NWUTRICK NL8MP |
| Handing Position | Dedicated hoisting system |
| Dimexnsions(H×W×D) | 370mm×1000mm×550mm |
| Net Weight(Kg) | 58 |
