Applications：
Music bars, DISCO, auditoriums, meeting rooms, banquet halls and other language and music sound reinforcement venues.
Engineering Information：

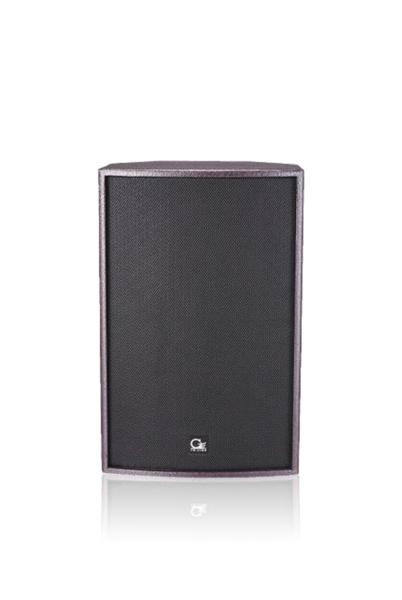

MODEL: NS-5
| Drivers | HF：1×1.4"Voice-coil:3"/ LF：1×15"Voice-coil:3"
|
| Frequency(+/-3dB) | 45-18000Hz |
| Dispersion(-6dB) | 90°×60° |
| Sensitivity(1m/1w) | 97dB |
| Maximum SPL | 125.5dB Continuous / 131.5dB Peak |
| Nominal Impedance | 8 Ohm |
| Rated Power | 565W AES / 2260W Peak |
| Recommended AMP | 900W / 8 Ohm |
| Crossover Frequency | 2000Hz (24dB/Octave slope) |
| Material | High-quality double-layer birch plywood box |
| Mesh surface | High-strength pressed hexagonal mesh surface, with black acoustic transparent guitar mesh attached to the outside |
| Finish | Environmental protection water-based paint |
| Connectors | 2×Speakon |
| Handing Position | 12个M10Lifting point |
| Dimexnsions(H×W×D) | 690mm×(462,276)mm×458mm |
| Net Weight(Kg) | 36.5 |
Constrction DraWing:
