Applications：
All indoor and outdoor performance events, including concerts, music festivals, auditoriums, churches, banquet halls, concert halls, conference rooms, and other venues for speech and music reinforcement.
Engineering Information：

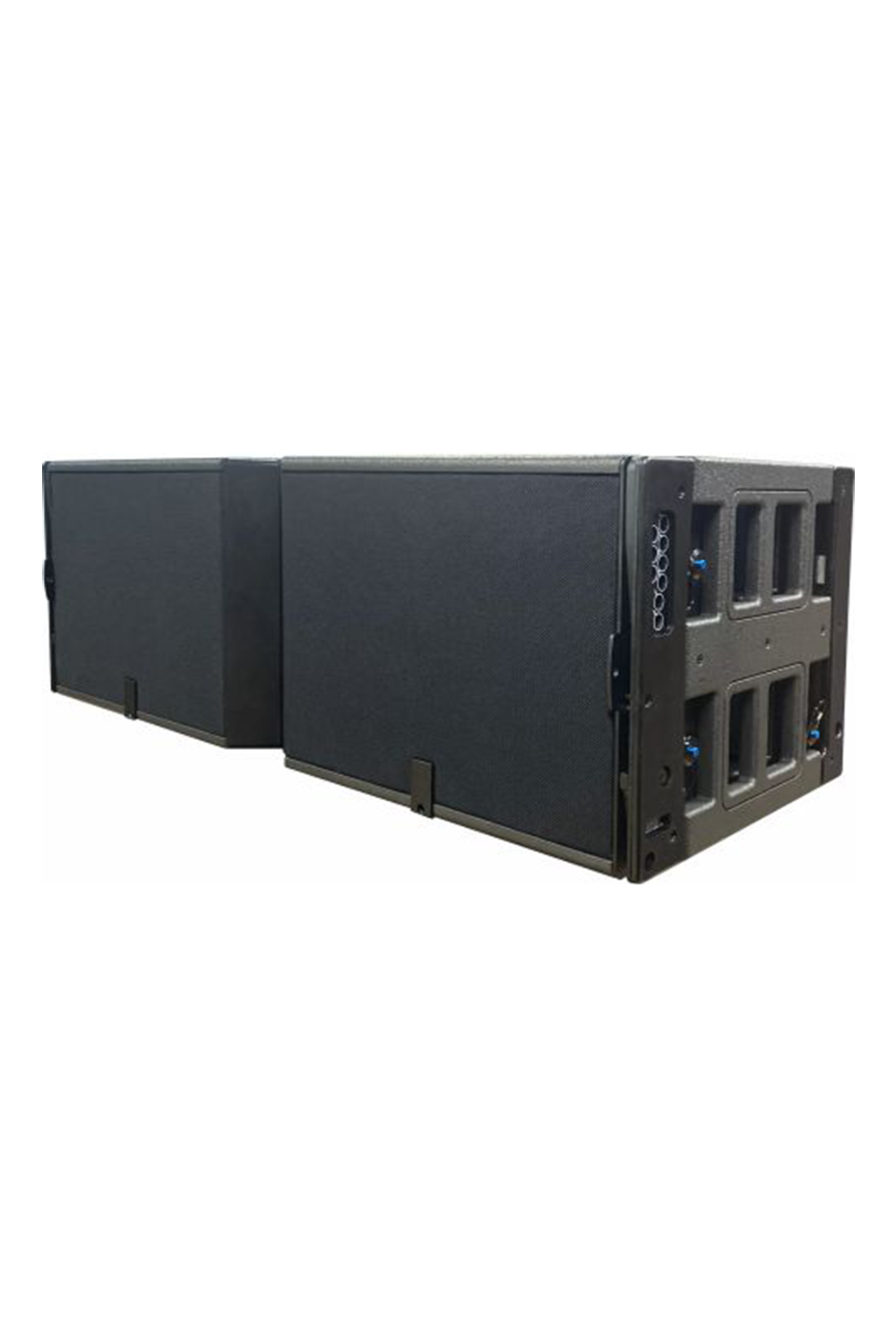

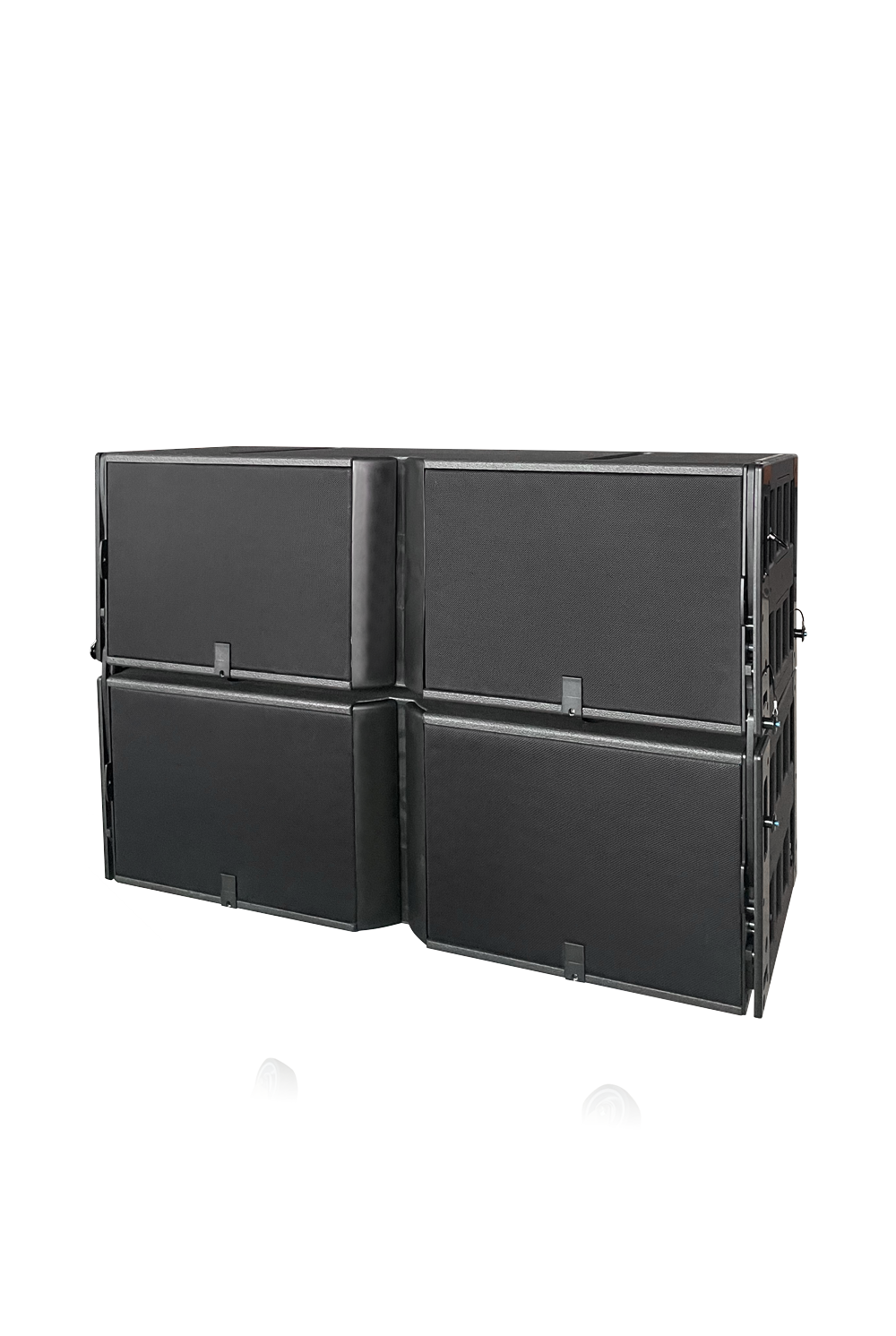

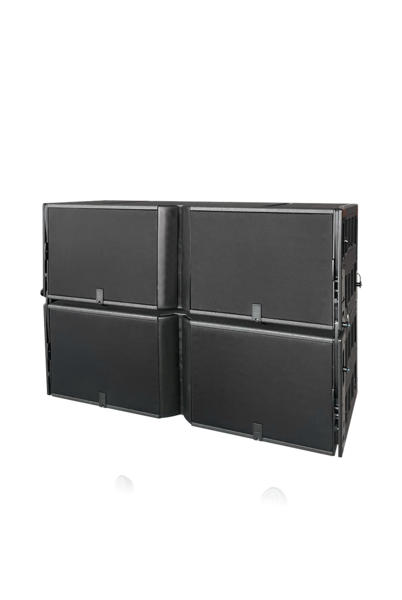

MODEL: K1
| Frequency (-10 dB): | 35 Hz-20 kHz |
| Directivity: | H: 90° V: 5° |
| Transducers: | LF transducer: 2 × 15" cone drivers MF transducer:4 × 6.5"cone drivers HF transducer: 3 × 3" diaphragm compression driver |
| Nominal Impedance: | LF: 2 × 8 Ω/MF: 8 Ω/HF: 8 Ω |
| Usable bandwidth: | 5 Hz - 20 kHz (-10 dB), 38 Hz - 19 kHz (-6 dB), 42 Hz - 19kHz (-3 dB) |
| AES Rated Power/ Program Power / Peak Power: | LF: 2x500W/ 2x1000W/ 2x2000W MF: 320W/ 640W/ 1280W HF: 240W/ 480W/ 960W |
| Maximum SPL： | 149 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4) |
| Connectors: | 2x8-point PA-COM |
| Dimension(H×W×D)(mm): | 1342mm×438mm×505mm |
| Gross Weight(Kg): | 105 |
