Applications：
TK film system, top entertainment clubs, nightclubs, high-end mass-market KTV, music bars, auditoriums, conference rooms and other language and music sound reinforcement venues.
Engineering Information：

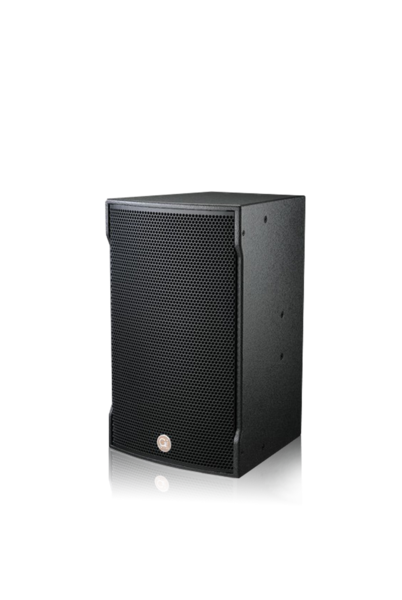

MODEL: TK-100
| Drivers | HF：1×1"Voice-clil:1.35"/ LF：1×10"Voice-coil:2.5" |
| Frequency(+/-3dB) | 53-18000Hz |
| Dispersion(-6dB) | 80°x70° |
| Sensitivity(1m/1w) | 96dB |
| Maximum SPL | 123.6dB Continuous / 129.6dB Peak |
| Nominal Impedance | 8 Ohm |
| Rated Power | 580W RMS/1160W Peak |
| Crossover Frequency | 2200Hz |
| Enclosure | High-quality double-layer birch plywood coated with black environmentally friendly water-based paint |
| Connectors | 2×Speakon NL4MP |
| Dimexnsions(H×W×D) | 530mm×(323,214)mm×359mm |
| Net Weight(Kg) | 15.6 |

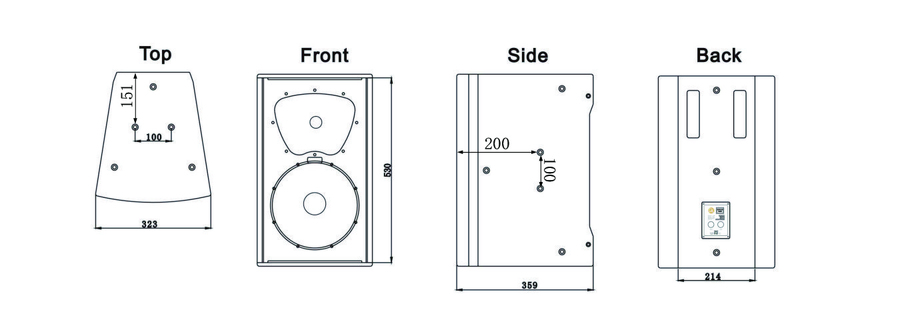

Constrction DraWing:
