Applications：
Applicable places:Performances, performing arts bars, party bars, music restaurants, auditoriums.
Engineering Information：

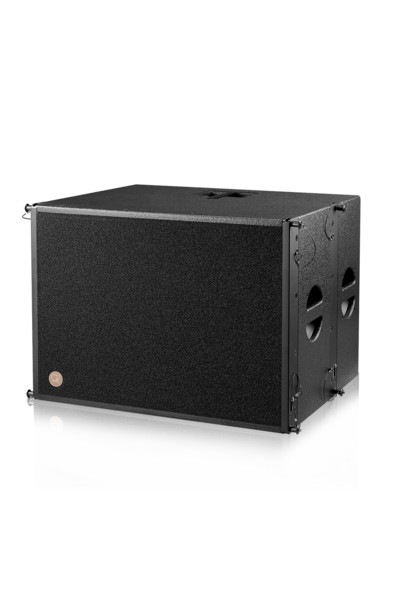

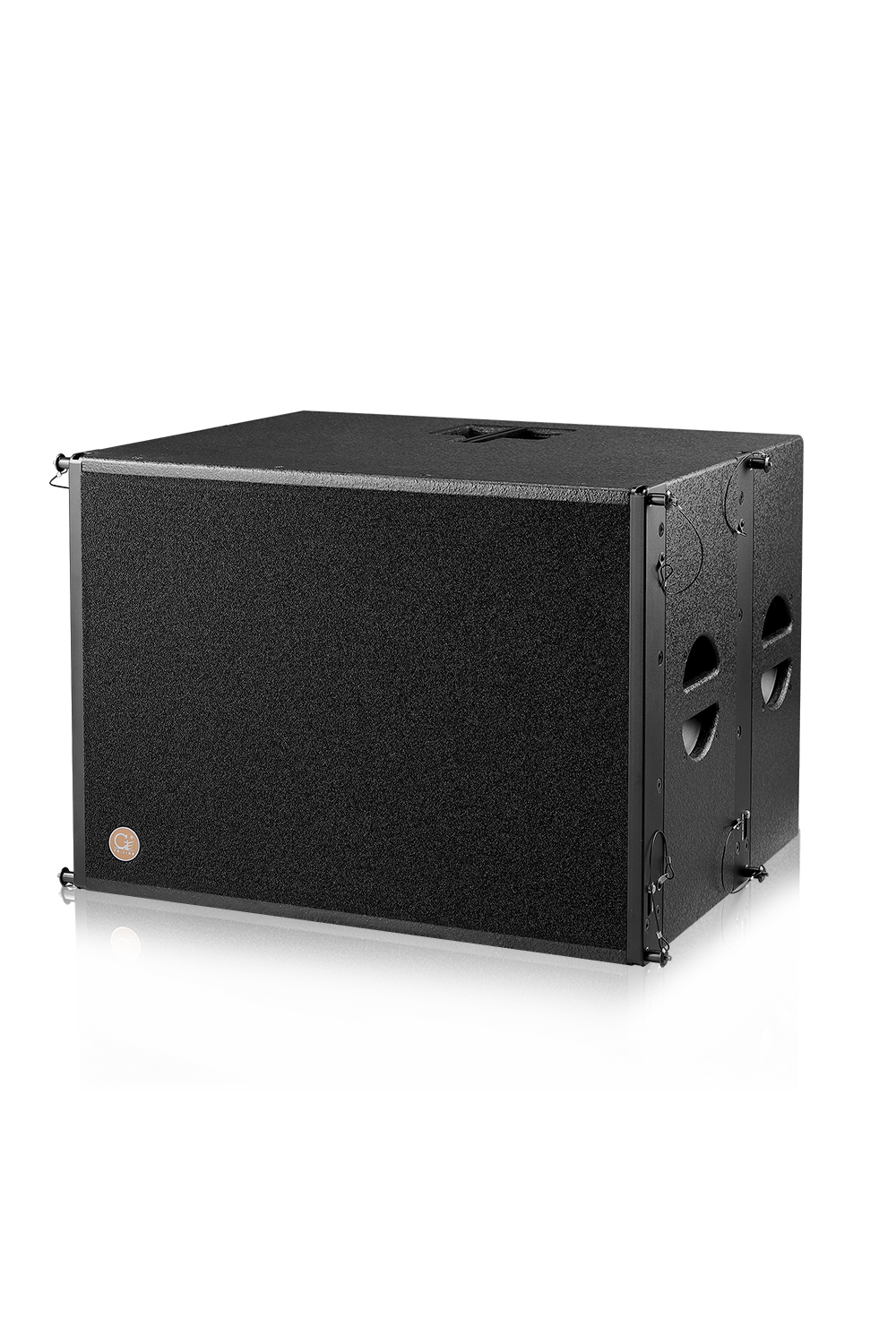

MODEL:TZ-180
| Drivers： | LF:1×18" Voice-coil:4" |
| Frequency(-10dB)： | 35-180Hz |
| Dispersion(-6dB) ： | ------- |
| Sensitivity(1m/1w)： | 98dB |
| Maximum SPL： | 128.4dB Continuous/134.4dB Peak |
| Nominal Impedance： | 8 Ohms |
| Rated Power： | 1200W RMS/2400W Peak |
| Material： | High-quality double-layer birch plywood box |
| Mesh surface： | High-strength steel mesh with hexagonal holes, plus special acoustically transparent sponge mesh |
| Finish： | Environmental protection water-based paint |
| Connectors： | 2×Speakon NL4MP |
| Dimexnsions(H×W×D)： | 516mm×(700)mm×595mm |
| Net Weight(Kg)： | 44.63 |

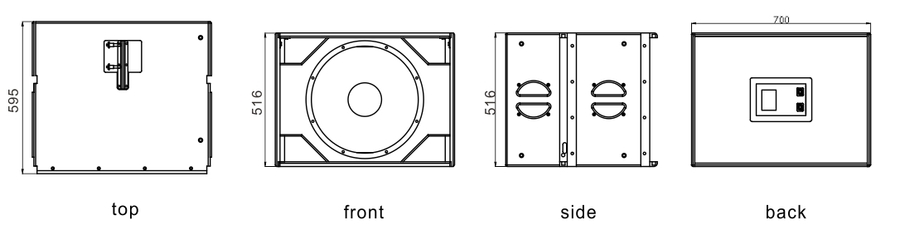

Constrction DraWing:
