Applications：
Applicable places: performances, performing arts bars, party bars, music restaurants, auditoriums.
Engineering Information：

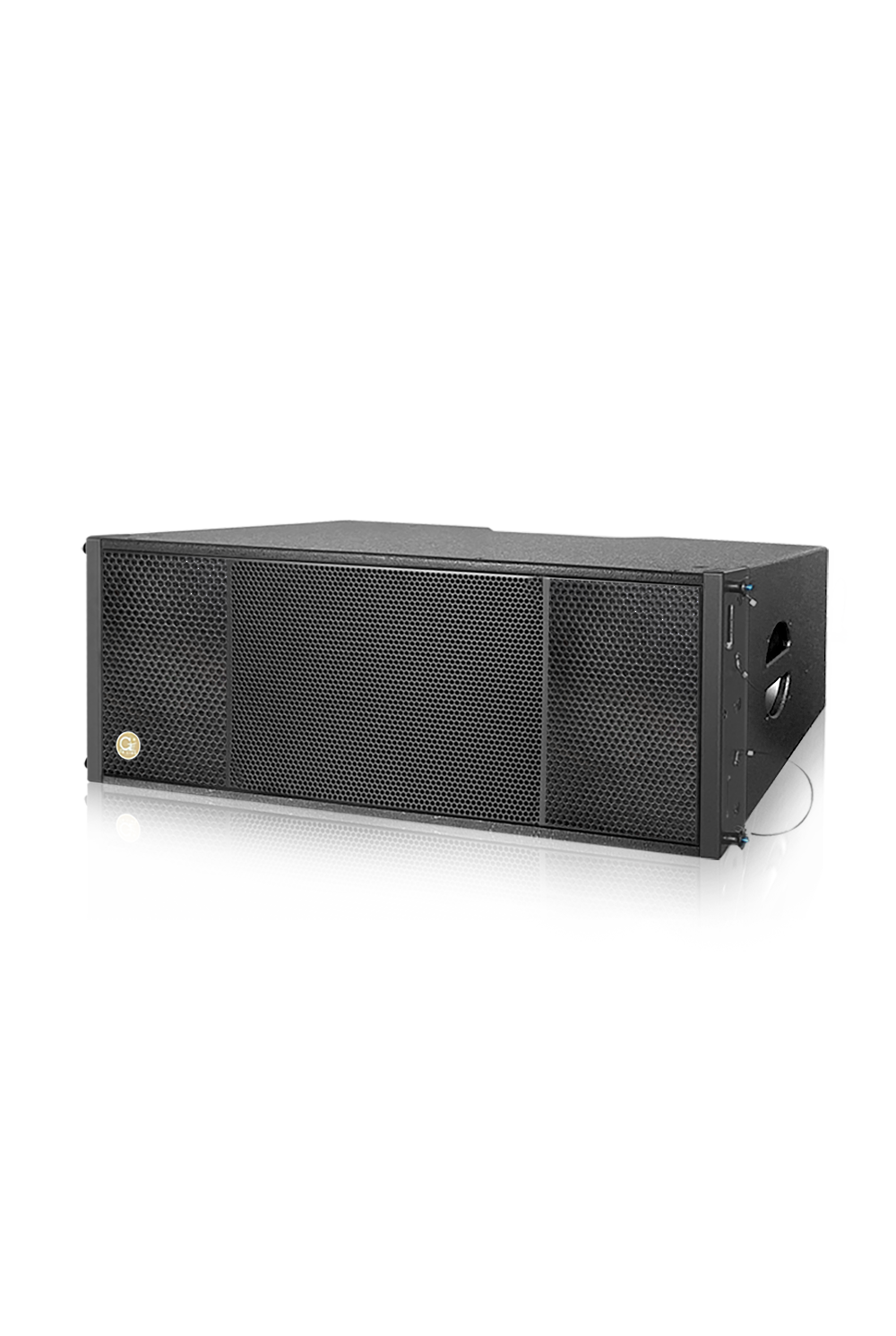

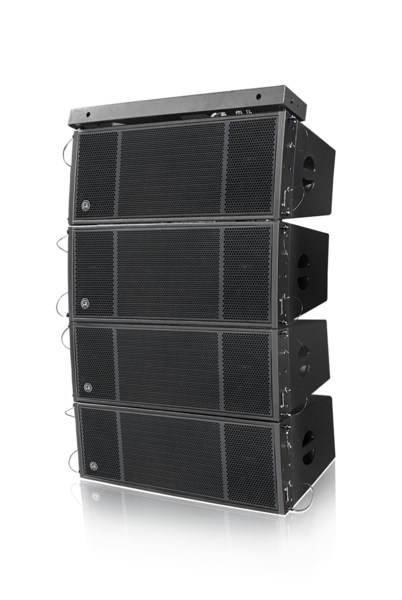

MODEL:TQ-200N
| Drivers | HF：2×1.4"Voice-coil：3" MF：4×6.5"Voice-coil：1.46" LF：2×12"Voice-coil：3" |
| Frequency (-10dB) | 40-18000Hz |
| Dispersion(-6dB) | H 120° x V8° |
| Sensitivity（1m/1W) | HF:109dB/MF:106.5dB/LF:102.5dB |
| Maximum SPL | 134.5dB continuous/140.5dB Peak |
| Standard impedance | HF:8 Ohms/MF:8 Ohms/LF:2x8 Ohms |
| Rated Power | HF:2x180W RMS/720W Peak MF:4x180W RMS /1440W Peak LF:2x800WRMS /3200WPeak |
| Crossover Frequency | 210Hz-1880Hz |
| Connectors | 2×Speakon NL8MP |
| Material | High-quality double-layer birch plywood box |
| Mesh surface | High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish | Environmental protection water-based paint |
| Handing Position | Dedicated hoisting system |
| Dimensions(H×WxD) | 368mm×970mm×557mm |
| Net Weight(Kg) | 52.5 |
Constrction DraWing:
