Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.
Engineering Information：

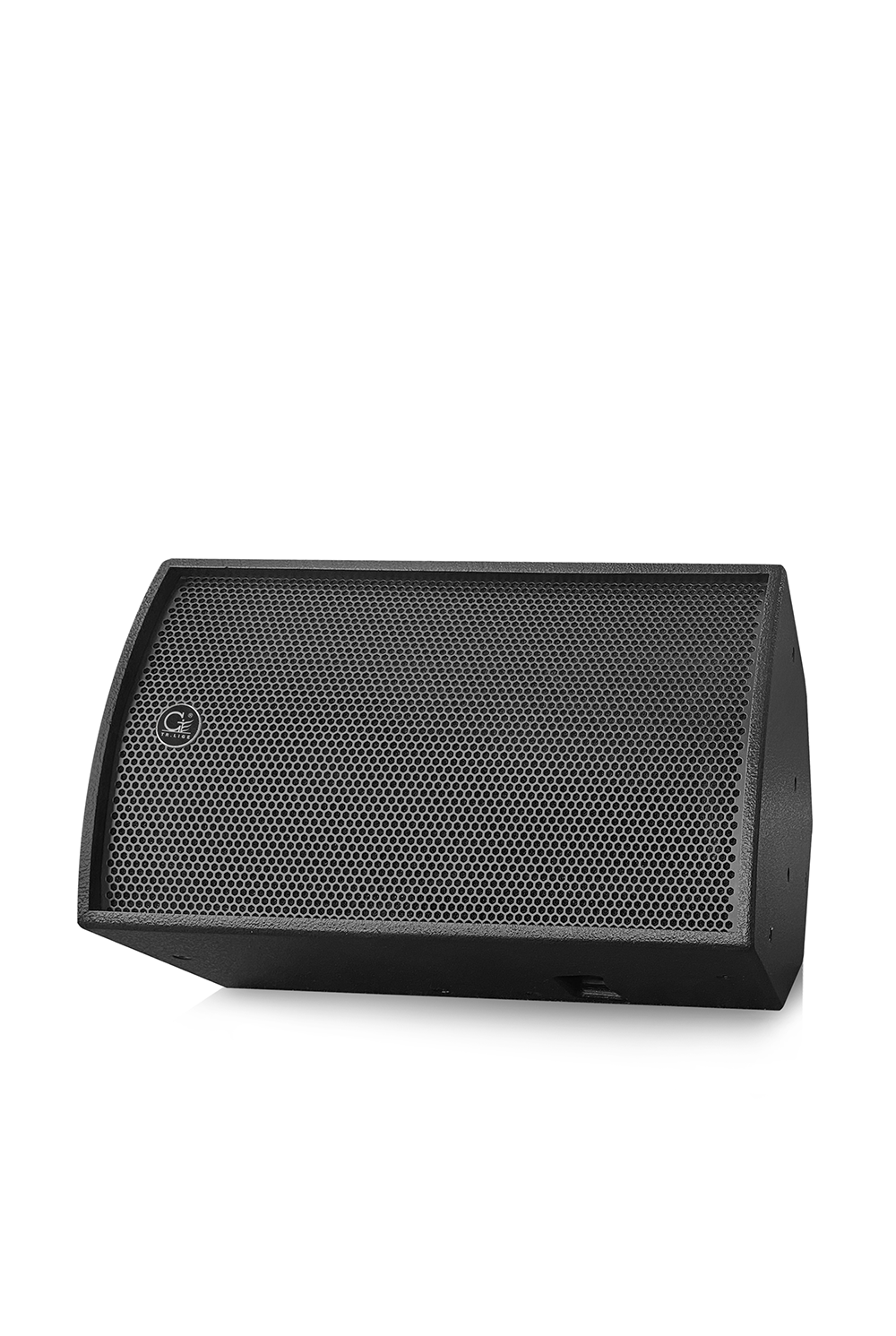

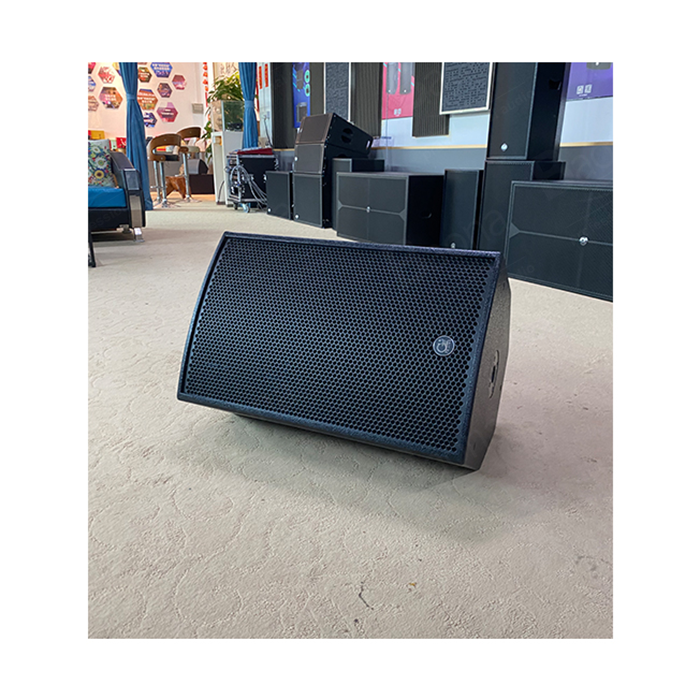

MODEL: TC-15-MA
| Drivers: | HF:1×1.4"Voica-coil:3"/LF:1×15"Voice-coil:3" |
| Frequency(-10dB): | 55-18000Hz |
| Dispersion(-6dB): | 90°×60° |
| Sensitivity(1m/1W): | 98dB |
| Maximum SPL: | 127dB Continuous/133dB Peak |
| Nominal Impedance: | HF:8 Ohms/LF:4 Ohms |
| Rated Power: | HF:160W RMS/320W Peak;LF:800W RMS/1600W Peak |
| Power amp: | 250W/8 Ohms+800W/4 Ohms |
| Amplifier type: | Switching power amp,class D circuit,with DSP/96K processing |
| Crossover Frequency: | 1600Hz(24dB/Octave slope) |
| Material: | High-quality double-layer birch plywood box |
| Mesh surface: | High strength pressed mesh surface,paste a special acoustic sponge mesh |
| Finish: | Environmental protection water-based paint |
| Connectors: | 2x Speakon XLR |
| Handing Position: | 19 M8Lifting point. |
| Dimensions(H×Wx D): | 672mm×(428,220)mm×434mm |
| Net Weight: | 30.8kg |
Constrction DraWing:
