Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.
Engineering Information：

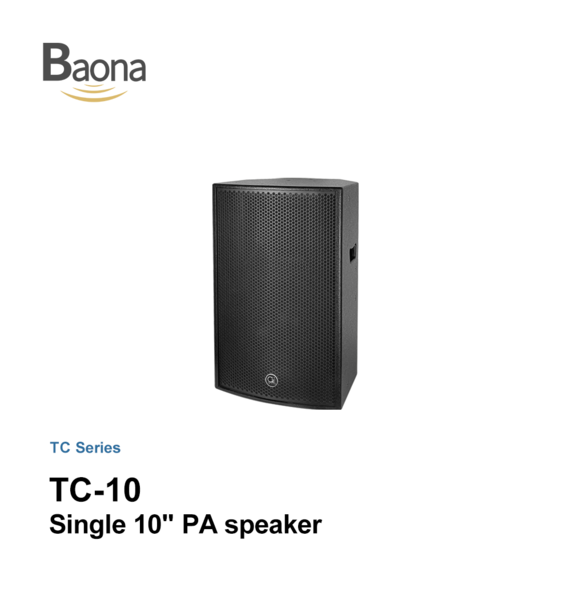

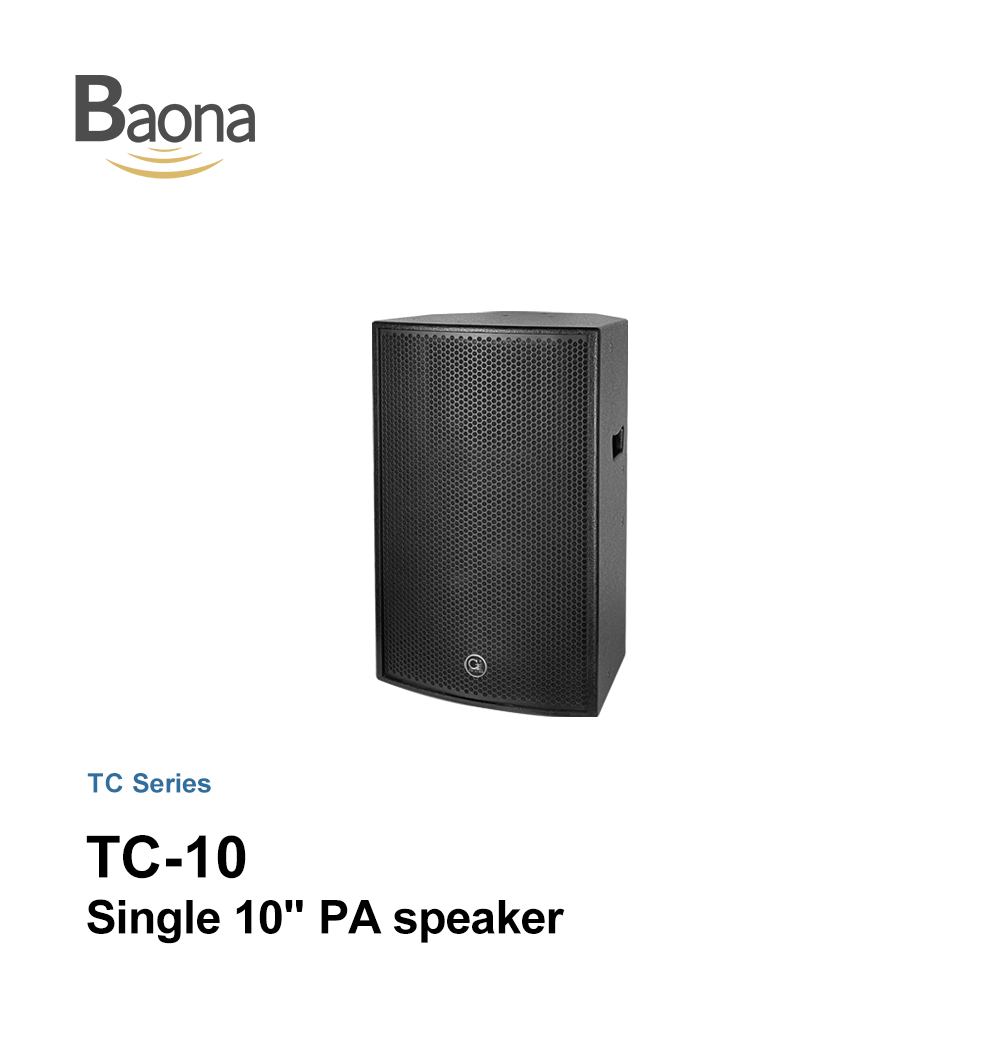

MODEL: TC-10
| Drivers | HF:1×1"Voice-coil:1.35"/ LF:1×10"Voice-coil:2.5"
|
| Frequency(+/-3dB) | 60-18000Hz |
| Dispersion(-6dB) | 90°×70° |
| Sensitivity(1m/1w) | 96.5dB |
| Maximum SPL | 123.3dB Continuous/129.3dB Peak |
| Nominal Impedance | 8 Ohms |
| Rated Power | 480W RMS/960W Peak |
| Recommended AMP | 500W/8 Ohms |
| Crossover Frequency | 2100Hz (24dB/Octave slope) |
| Material | High-quality double-layer birch plywood box |
Mesh surface | High strength pressed mesh surface, paste a special acoustic sponge mesh. |
| Finish | Environmental protection water-based paint |
| Connectors | 2×Speakon NL4MP |
| Handing Position | 19 M8Lifting point |
| Dimexnsions(H×W×D) | 506mm×(301,153)mm×311mm |
| Net Weight(Kg) | 13.8 |
Constrction DraWing:
