Applications：
All indoor and outdoor performance events, including concerts, music festivals, auditoriums, churches, banquet halls, concert halls, conference rooms, and other venues for speech and music reinforcement.
Engineering Information：

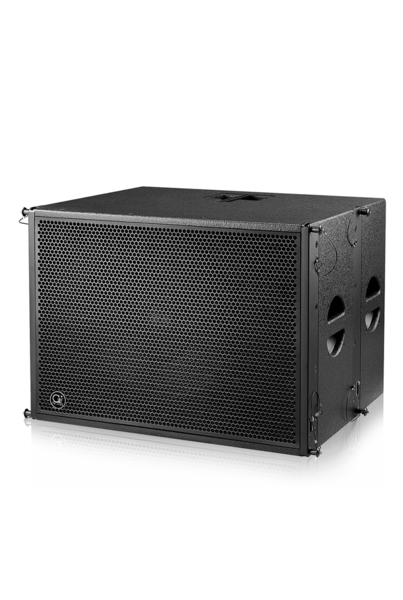

MODEL:SATELLITE-TZ－1180SUB
| Drivers： | LF:1×18" Voice-coil:4" |
Frequency(-10dB)：
| 35-180Hz |
| Dispersion(-6dB) ： | ------- |
| Sensitivity(1m/1w)： | 101.7dB |
| Maximum SPL： | 133.7dB Continuous/139.7dB Peak |
| Nominal Impedance： | 8 Ohms |
| Rated Power： |
1600W RMS/3200W Peak |
| Recommended AMP： | 1300W/8 Ohms |
| Material： | High-quality plywood |
| Mesh surface： | High-strength steel mesh with hexagonal holes, plus special acoustically transparent sponge mesh |
| Finish： | Environmental protection water-based paint |
| Connectors： | 2×Speakon NL4MP |
| Dimexnsions(H×W×D)： | 516mm×(700)mm×595mm |
| Net Weight(Kg)： | 41.3
|
Constrction DraWing:
