Applications：
K film system, top entertainment clubs, nightclubs, high-end mass-market KTV, music bars, auditoriums, conference rooms and other language and music sound reinforcement venues.
Engineering Information：

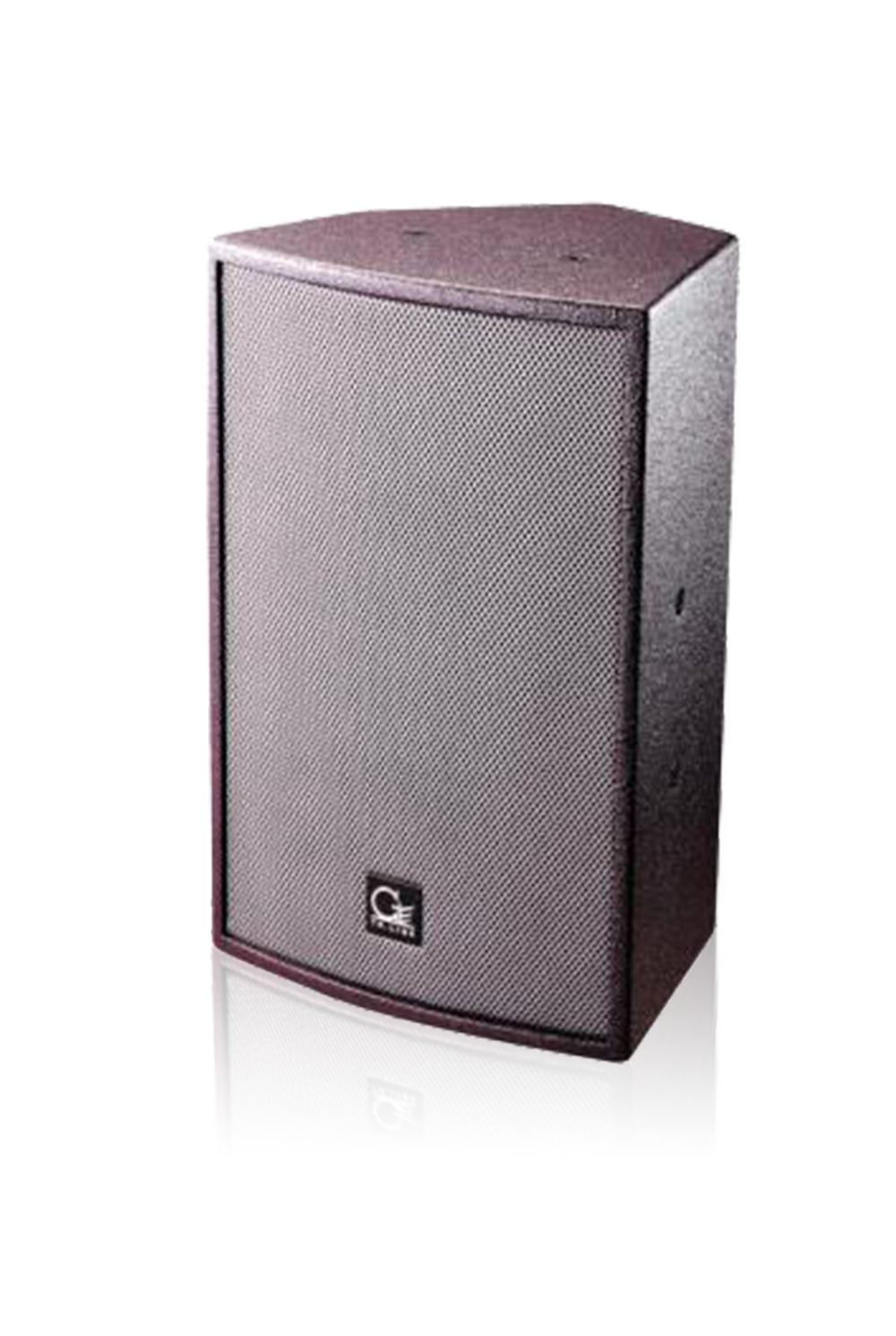

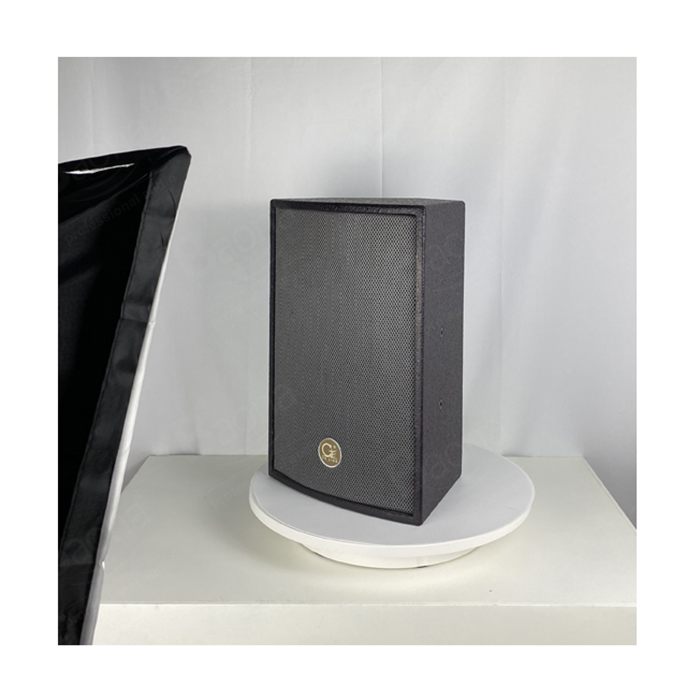

MODEL: KC-801
| Drivers | HF:1×1"Voice-coil:1.74"/LF:1×8"Voice-coil:2"
|
| Frequency(+/-3dB) | 70-18000Hz |
| Dispersion(-6dB) | 100°×45° |
| Sensitivity(1m/1w) | 95dB |
| Maximum SPL | 120.8dB Continuous/126.8dB Peak |
| Nominal Impedance | 8 Ohms |
| Rated Power | 380W RMS/760W Peak |
| Recommended AMP | 350W/8 Ohms |
| Crossover Frequency | 2800Hz (24dB/Octave slope) |
| Material | High-quality double-layer birch plywood box |
| Mesh surface | High-strength pressed hexagonal mesh surface, with grey acoustic transparent guitar mesh attached to the outside |
| Finish | Environmental protection water-based paint |
| Connectors | 2×Speakon NL4MP |
| Handing Position | 4 M8Lifting point |
| Dimexnsions(H×W×D) | 422mm×(280,105)mm×232mm |
| Net Weight(Kg) | 9.1 |
Constrction DraWing:
