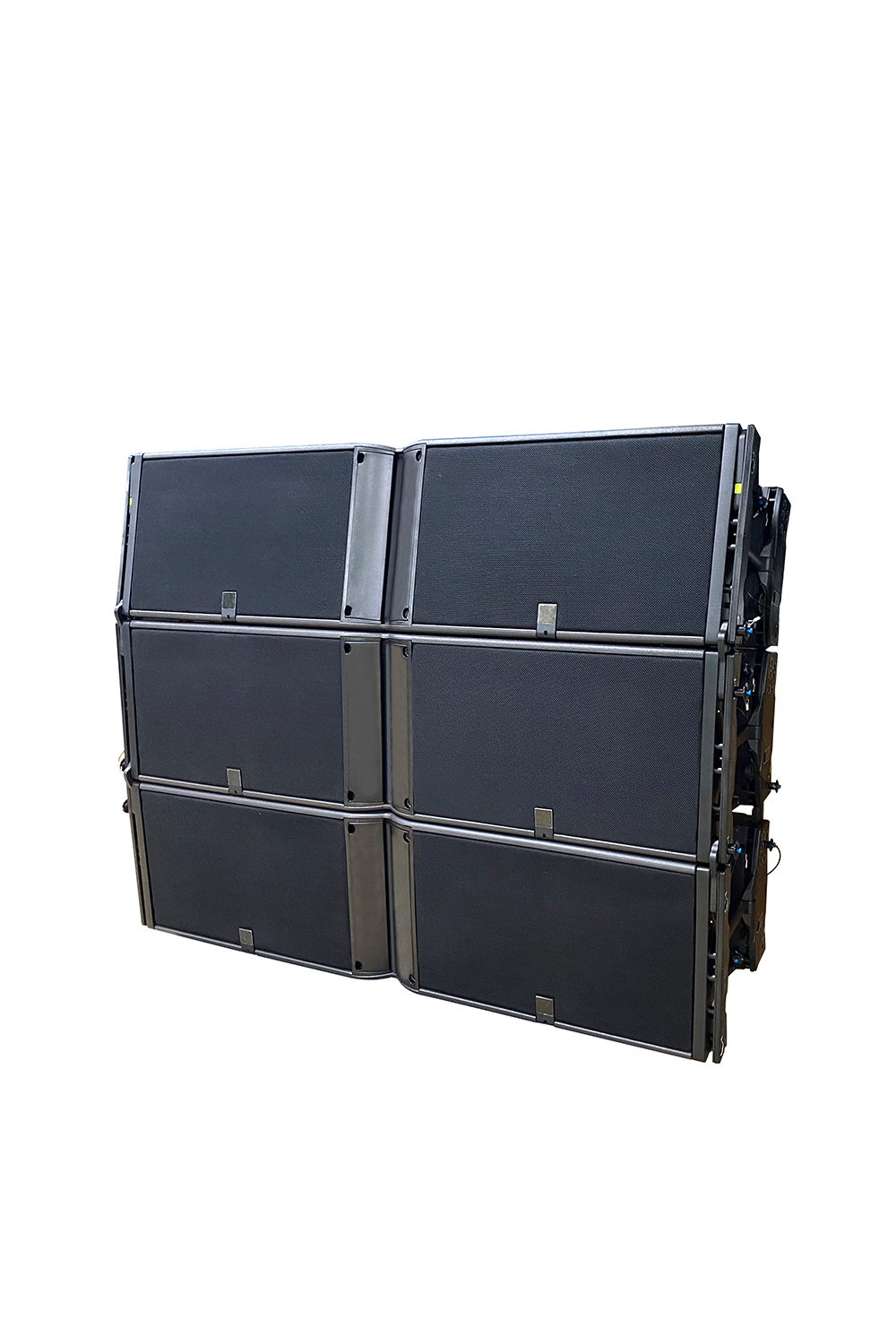

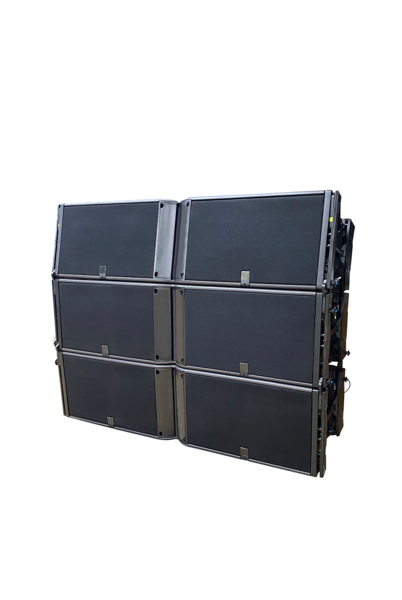

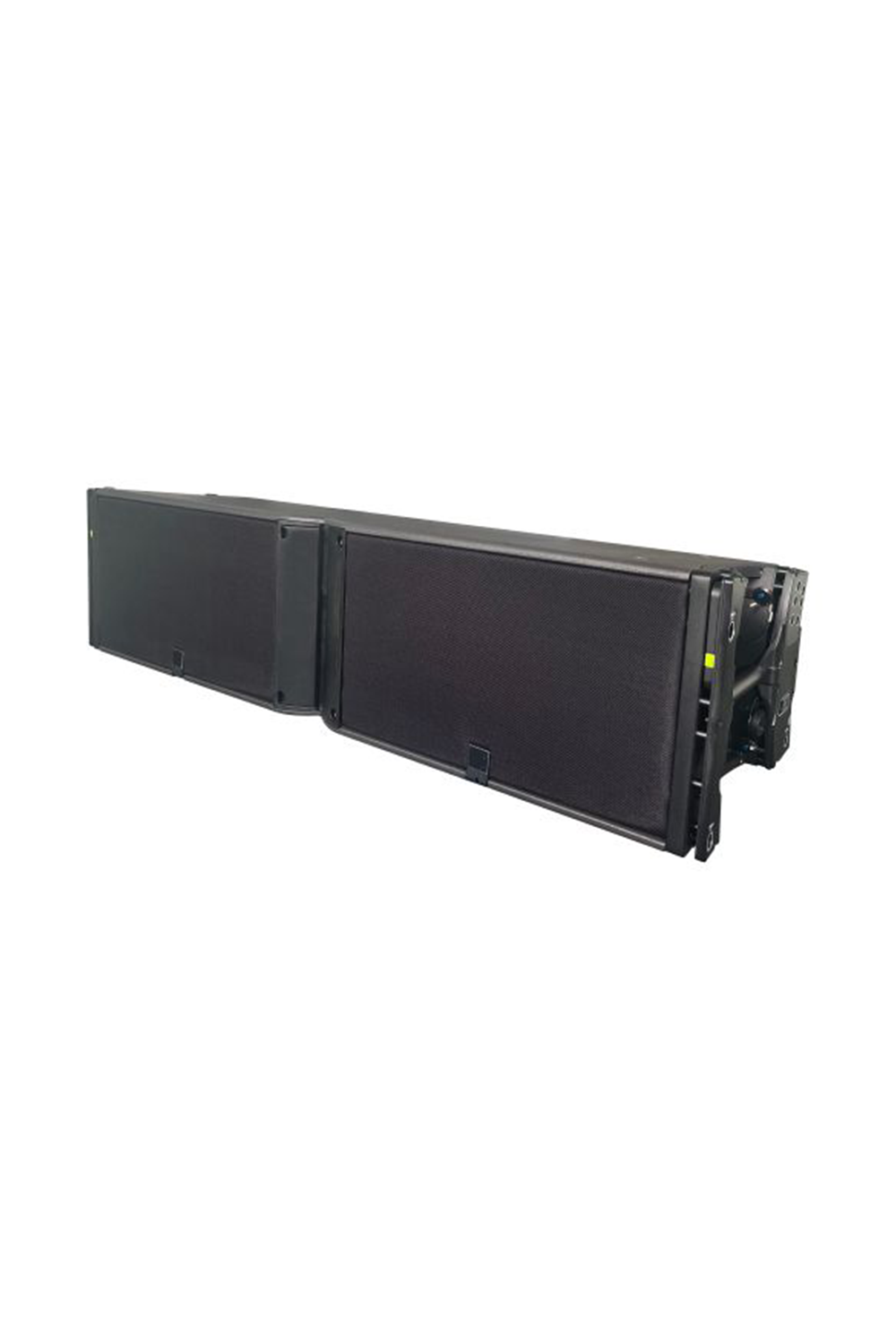

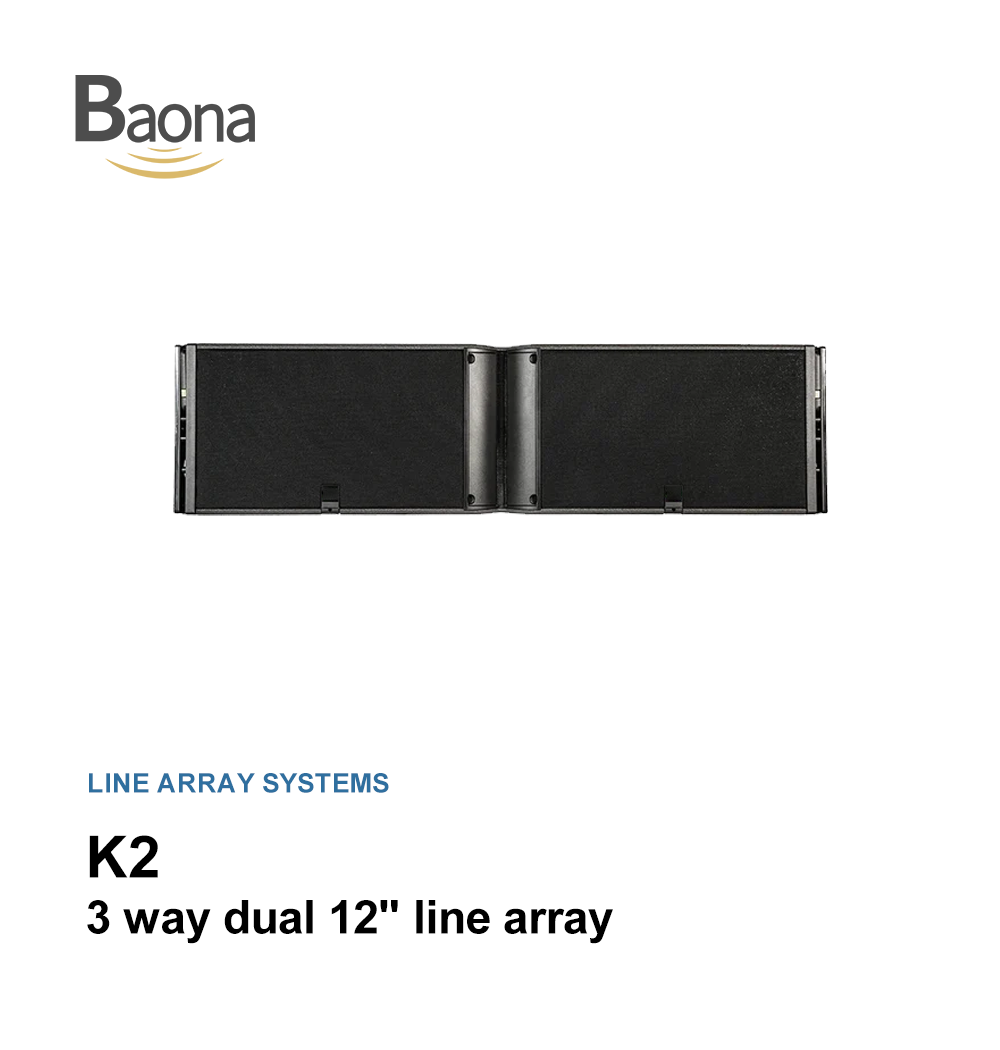

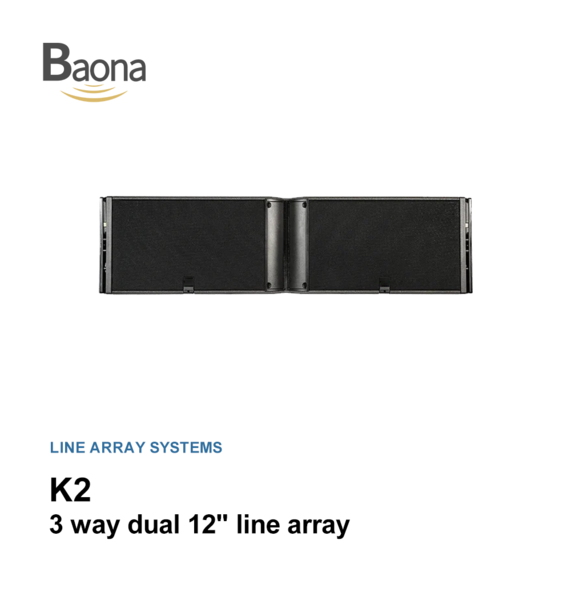

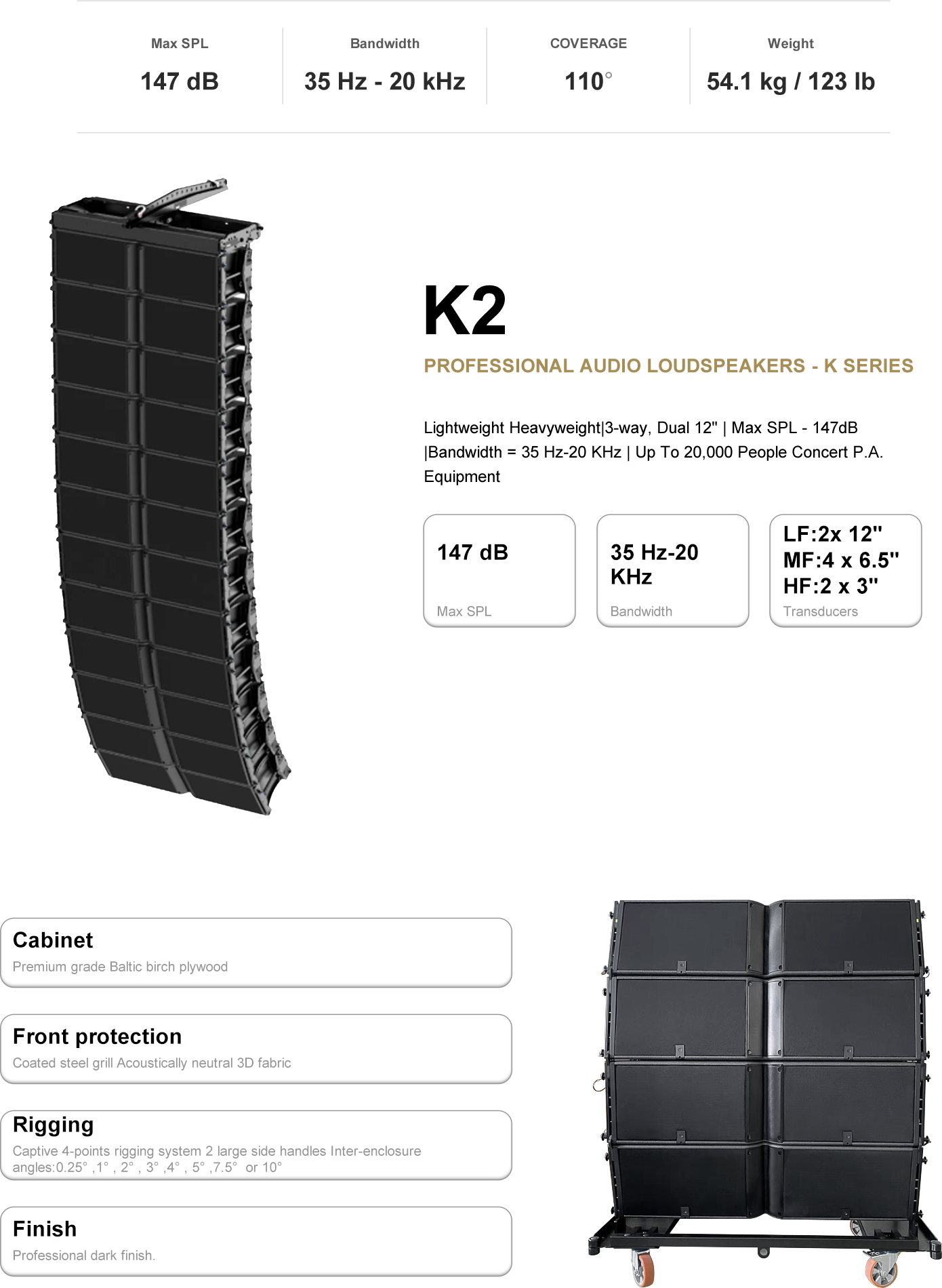

K2

K2

Type： LINE ARRAY SYSTEMS
Brand： TR.LIGE
Model： K2
Product Details

Applications：

All indoor and outdoor performance events, including concerts, music festivals, auditoriums, churches, banquet halls, concert halls, conference rooms, and other venues for speech and music reinforcement.




Engineering Information：

MODEL: K2

Frequency (-10dB):35-20KHz
Directivity:H: 70° / 90° / 110°   V: 10°
Transducers:

LF transducer: 2 × 12" cone drivers

MF transducer:4 × 6.5"cone drivers

HF transducer: 2 × 3" diaphragm

compression driver

Nominal Impedance:

LF: 2 × 8 Ω/MF: 8 Ω/HF: 8 Ω

Usable bandwidth:35 Hz - 20 kHz (-10 dB), 38 Hz - 20 kHz (-6 dB), 40 Hz - 20 kHz (-3 dB)
AES Rated Power/ Program Power / Peak Power:

LF:   2x400 W/ 2x800W/ 2x1600W

MF: 320W/ 640W/ 1280W

HF: 160W/ 320W/ 640W

Maximum SPL :147 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
Connectors:2×8-point PA-COM
Dimension(H×W×D)(mm):

1350mm×(365,295)mm×404mm

Net Weight(Kg):54.1
